Crompton · SKU: thwpm1139

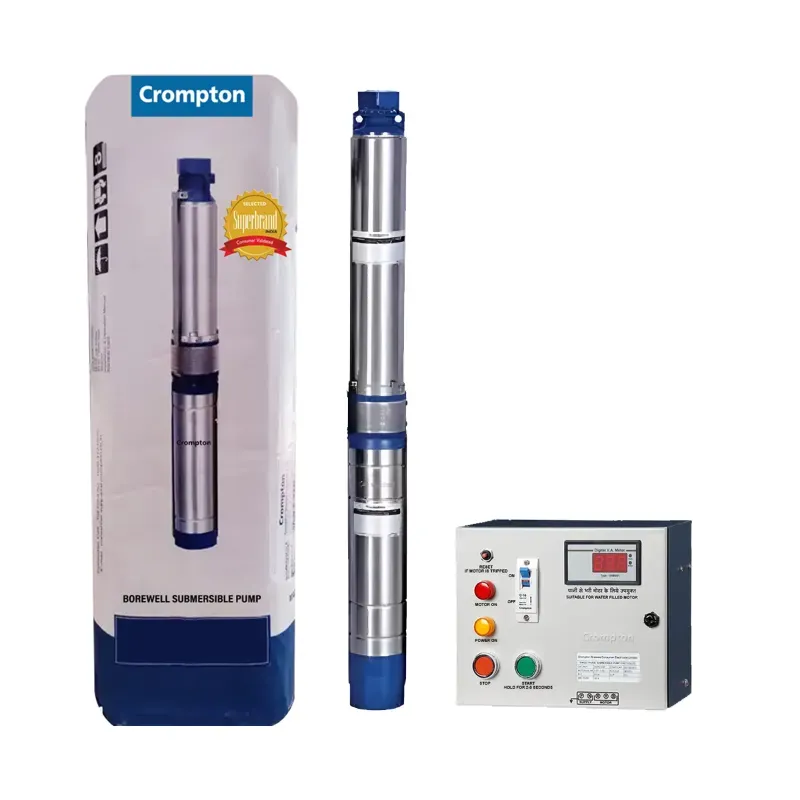

Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5)
In Stock
₹18,809₹23,500-20% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Crompton |
| Power | 1.5 hp |
| Weight (Approx.) | 20.5 kg |
| Flow Rate | 100 lpm |
| Head | 74 meter |
| Model No. | 4W12BF1.5E-40 + NDCP 1.5 |
| Product Type | Borewell Submersible Pump with Control Panel |
| Electricity Connection | Single Phase |
| Rated Voltage | 180V-240V, 50 Hz |
| Wattage | 1.1 kW |
| No. of Stage | 12 |
| Borewell Size | 100 mm (4 inch) |
| Outlet Size | 40 mm |
| Motor Cooling Type | Water Filled |
| Max Head | 74 meters (242 feet) |
| Max. Flow Rate | 6000 LPH |
| MCB | 13A |
| Starting Cap. | 120-150 mfd |
| Running Cap. | 72 mfd |
| Winding Material | Copper |
| Diffuser | Noryl |
| Impeller | Noryl/Delrin |
| Pump Shaft | Stainless Steel-SS410 |
| NRV Body | Cast Iron-Grade FG 200 |
| Motor Body | Stainless Steel-SS202/SS304 |
| Pump Jacket | Cast Iron-Grade FG 200 |
| Upper Housing, Motor Base | Stainless Steel-SS202 |
| Bush | Bronze LTB-4 |
| Motor Shaft | Stainless Steel-SS420 |
| Stamping | CRNGO-M47 |
| Thrust Bearing | SS Vs Zytel / SS Vs Carbon |
| Strainer | Stainless Steel-SS202 |
| Fastener | Stainless Steel-SS410 |
| Sealing | Oil seal |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5)
Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Crompton. Key specifications include power 1.5 hp, weight (approx.) 20.5 kg, flow rate 100 lpm, head 74 meter, model no. 4W12BF1.5E-40 + NDCP 1.5. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 20.5 kg |
| Flow Rate | 100 lpm |
| Head | 74 meter |
| Model No. | 4W12BF1.5E-40 + NDCP 1.5 |
| Product Type | Borewell Submersible Pump with Control Panel |
| Electricity Connection | Single Phase |
| Rated Voltage | 180V-240V, 50 Hz |
| Wattage | 1.1 kW |
| No. of Stage | 12 |
| Borewell Size | 100 mm (4 inch) |
| Outlet Size | 40 mm |
FAQs related to Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5)
Is a GST invoice provided for Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) purchases?
+
Yes, every Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5)?
+
Installation requirements vary by Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) packaged and delivered to avoid transit damage?
+
Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What capacity or specification of Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) should I choose?
+
The right Crompton 1.5 HP 12 Stage(4 Inch) Water Filled Submersible Pump With CP, 242 ft Head (4W12BF1.5E-40+ NDCP 1.5) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
