Crompton · SKU: thwpm685

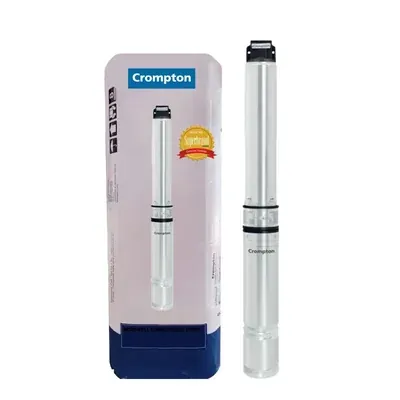

Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E)
In Stock
₹17,403₹24,962-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Crompton |
| Power | 1.5 hp |
| Weight (Approx.) | 18 kg |
| Flow Rate | 95 lpm |
| Head | 80 meter |
| Model No. | 4W12BF1.5E |
| Product Type | Borewell Submersible Pump |
| Power Source | Electric, AC Supply |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Max Head Range | 79 to 262 feet (24 to 80 meters) |
| No. of Stages | 12 |
| Delivery Size | 32 mm |
| Max. Flow Rate | 95 to 10 LPM (5700 to 60 LPH) |
| Winding Material | Copper |
| Diffuser | Noryl |
| Impeller | Noryl/Delrin |
| Pump Shaft | Stainless Steel-SS410 |
| NRV Body | Cast Iron-Grade FG 200 |
| Motor Body | Stainless Steel-SS202/SS304 |
| Pump Jacket | Cast Iron-Grade FG 200 |
| Upper Housing, Motor Base | Stainless Steel-SS202 |
| Bush | Bronze LTB-4 |
| Motor Shaft | Stainless Steel-SS420 |
| Stamping | CRNGO-M47 |
| Thrust Bearing | SS Vs Zytel / SS Vs Carbon |
| Strainer | Stainless Steel-SS202 |
| Fastener | Stainless Steel-SS410 |
| Sealing | Oil seal |
| High Grade Electrical Stamping | Reduces electrical losses and improves pump efficiency. |
| High Thrust Capacity | Specially designed thrust bearing ensures highest reliability. |
| In Built Check Valve | In built check valve prevents pump parts from damage due to sudden back pressure. |
| High Quality Noryl | High quality virgin noryl components give longer life. |
| Easy for Maintenance | Simple construction, easily replaceable wear and tear parts. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E)
Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Crompton. Key specifications include power 1.5 hp, weight (approx.) 18 kg, flow rate 95 lpm, head 80 meter, model no. 4W12BF1.5E. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 18 kg |
| Flow Rate | 95 lpm |
| Head | 80 meter |
| Model No. | 4W12BF1.5E |
| Product Type | Borewell Submersible Pump |
| Power Source | Electric, AC Supply |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Max Head Range | 79 to 262 feet (24 to 80 meters) |
| No. of Stages | 12 |
FAQs related to Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E)
Is a GST invoice provided for Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) purchases?
+
Yes, every Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E), so replacement parts can be sourced without needing to buy a full new unit.
How is Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) packaged and delivered to avoid transit damage?
+
Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What capacity or specification of Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) should I choose?
+
The right Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can contractors or dealers set up recurring bulk orders for Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Crompton 1.5 HP 12 Stage 100 mm 1Ph Water Filled Borewell Submersible Pump With 32 mm Outlet (4W12BF1.5E) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
