KBS · SKU: thwpm368

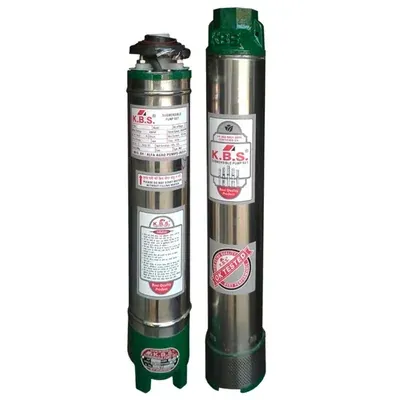

KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head
In Stock
₹17,403₹19,500-11% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 3 hp |
| Weight (Approx.) | 30.5 kg |
| Flow Rate | 200 lpm |
| Head | 37 meter |
| Product Type | Submersible Pump |
| Wattage | 2.2 kW |
| Supply Voltage | 200-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 4 |
| Max. Head Range | 120 Feet (37 Meter) |
| Max. Flow/Discharge Rate | 200 LPM (12000 LPH) |
| Pipe Size (Suction x Delivery) | 50 x 50 mm (2 x 2 inch) |
| Cooling Type | Water Cooled |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head
KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 3 hp, weight (approx.) 30.5 kg, flow rate 200 lpm, head 37 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 30.5 kg |
| Flow Rate | 200 lpm |
| Head | 37 meter |
| Product Type | Submersible Pump |
| Wattage | 2.2 kW |
| Supply Voltage | 200-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 4 |
FAQs related to KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head
How is KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head packaged and delivered to avoid transit damage?
+
KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head come with a manufacturer warranty?
+
Warranty coverage for KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Does ToolHaat offer installation guidance for KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head?
+
Installation requirements vary by KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Are spare parts and accessories for KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 3 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 120 ft Head, so replacement parts can be sourced without needing to buy a full new unit.
