Kirloskar · SKU: thwpm459

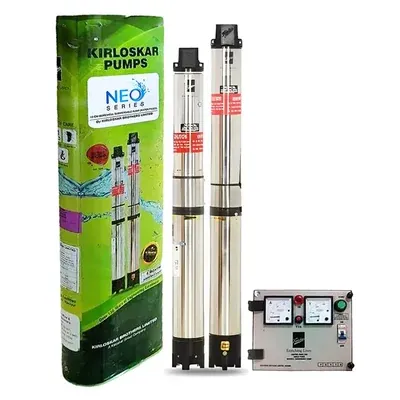

Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP)
In Stock
₹28,709₹35,657-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 31.7 kg |
| Flow Rate | 48 lpm |
| Head | 175 meter |
| Model No. | NEO 30-2025 CP |
| Product Name | Borewell Submersible Pump |
| With Control Panel | Yes |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.5 kW |
| Rated Current | 15 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
| Protection | IP 68 |
| No. of Stages | 25 |
| Outlet Size | 32 mm |
| Borewell Size | 100 mm (4 inch) |
| Max. Head | 574 Feet (175 meters) |
| Max. Discharge Rate | 48 LPM (2880 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP)
The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage Resulting in lesser vibrations and longer trouble-free operation High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life. The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years. Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life. Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers
Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 31.7 kg |
| Flow Rate | 48 lpm |
| Head | 175 meter |
| Model No. | NEO 30-2025 CP |
| Product Name | Borewell Submersible Pump |
| With Control Panel | Yes |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.5 kW |
| Rated Current | 15 Amp |
| Cooling Type | Water Filled |
FAQs related to Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP)
Does ToolHaat offer installation guidance for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP)?
+
Installation requirements vary by Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I compare multiple brands of Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) should I choose?
+
The right Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-2025 CP), so replacement parts can be sourced without needing to buy a full new unit.
