Kirloskar · SKU: thwpm458

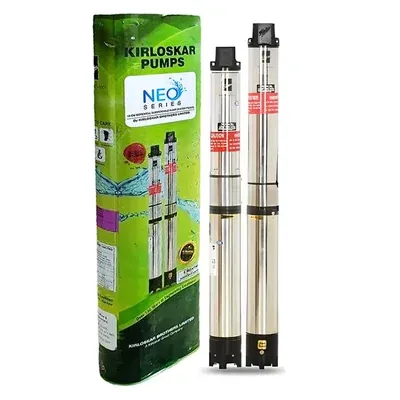

Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025)
In Stock
₹24,749₹35,591-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 30 kg |
| Flow Rate | 48 lpm |
| Head | 175 meter |
| Model No. | NEO 30-2025 |
| Product Name | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.5 kW |
| Rated Current | 15 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
| Protection | IP 68 |
| No. of Stages | 25 |
| Outlet Size | 32 mm |
| Borewell Size | 100 mm (4 inch) |
| Max. Head | 574 Feet (175 meters) |
| Max. Discharge Rate | 48 LPM (2880 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025)
The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage Resulting in lesser vibrations and longer trouble-free operation High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life. The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years. Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life. Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers
Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 30 kg |
| Flow Rate | 48 lpm |
| Head | 175 meter |
| Model No. | NEO 30-2025 |
| Product Name | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.5 kW |
| Rated Current | 15 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
FAQs related to Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025)
Can contractors or dealers set up recurring bulk orders for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What if Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Are spare parts and accessories for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025), so replacement parts can be sourced without needing to buy a full new unit.
What capacity or specification of Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) should I choose?
+
The right Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 2 HP 25 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-2025) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
