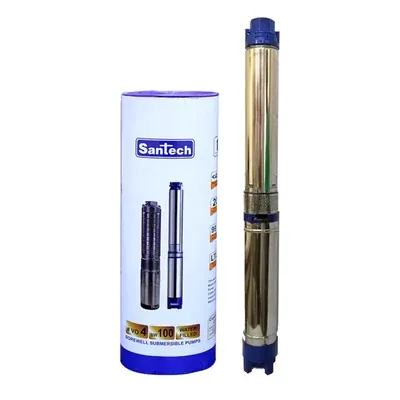

2HP 18 Stage 4 inch(V4) Single Phase Water Cooled Submersible Pump, 259ft Max. Head — Santech
Santech · SKU: thwpm408

2HP 18 Stage 4 inch(V4) Single Phase Water Cooled Submersible Pump, 259ft Max. Head — Santech

In Stock
₹11,200₹15,000-25% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
BrandSantech
Power2 hp
Weight (Approx.)25 kg
Flow Rate88 lpm
Head79 meter
Product TypeSubmersible Pump
Wattage1.5 kW
Electricity ConnectionSingle Phase
Voltage230 Volt
No Of Stage18
Pump TypeV4
Borewell Size4 inch (100 mm)
Cora4
Max. Head Range79 Meter (259 Feet)
Max. Discharge Range88 LPM
Pipe Size (Suction x Delivery)100 x 32 mm
Motor WindingPOLYWRAP Copper Winding
Motor Body MaterialCast Iron
Motor Rotor MaterialAL.DIE CAST
Motor Core Length250 mm
Motor Core QualityCRNO (Cold Rolled Non-Oriented)
Motor Bearing BushLTB 4
Pump BushLTD 4/NITRILE
Pump BowlNORYL 20% GF
Impeller MaterialNORYL 20 % GF
Motor Pipe MaterialStainless Steel
Bearing BushNITRILE/LTB -4
Motor Shaft MaterialSS. 410
Thrust Bearing MaterialSS/CARBON
Stamping MaterialELECTRO GRADE
Rotor MaterialELECTRO GRADE
Suction/OutletC.I
Diffuser MaterialNoryl 20 % GF
Pump Shaft MaterialSS. 410
Pump Pipe MaterialStainless Steel
⚖️
