KBS · SKU: thwpm417

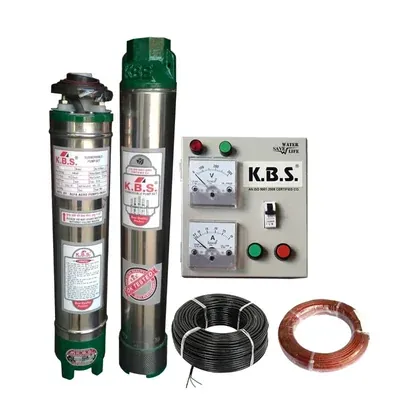

2Hp 12 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire — KBS
In Stock
₹14,399₹20,000-28% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 2 hp |
| Weight (Approx.) | 23.5 kg |
| Flow Rate | 150 lpm |
| Head | 31 meter |
| Product Type | Submersible Pump |
| Wattage | 1.5 kW |
| Supply Voltage | 200-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 12 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 4 |
| Max. Head Range | 100 Ft. (31 Meter) |
| Max. Flow/Discharge Rate | 150 LPM (9000 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 50 mm (1 x 2 inch) |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
| Submersible Pump Warranty | 1 Year Warranty on Manufacturing Defects. |
| Accessories Warranty | NO Warranty on the accessories. |
⚖️
