KBS · SKU: thwpm352

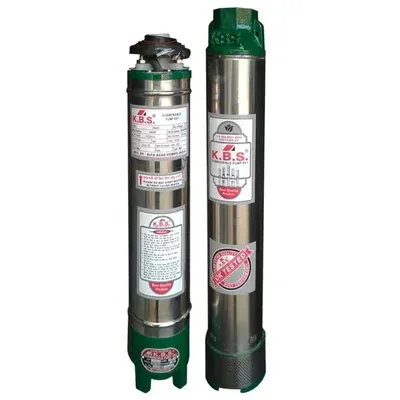

KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head
In Stock
₹11,582₹15,450-25% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 2 hp |
| Weight (Approx.) | 30.50 kg |
| Flow Rate | 150 lpm |
| Head | 31 meter |
| Product Type | Submersible Pump |
| Wattage | 1.5 kW |
| Supply Voltage | 200-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 12 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 4 |
| Max. Head Range | 100 Feet (31 Meter) |
| Max. Flow/Discharge Rate | 150 LPM (9000 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 50 mm (1 x 2 inch) |
| Cooling Type | Water Cooled |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head
KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 2 hp, weight (approx.) 30.50 kg, flow rate 150 lpm, head 31 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 30.50 kg |
| Flow Rate | 150 lpm |
| Head | 31 meter |
| Product Type | Submersible Pump |
| Wattage | 1.5 kW |
| Supply Voltage | 200-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 12 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 4 |
FAQs related to KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head
Can I get bulk pricing for KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head if I need multiple units?
+
Yes — KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head packaged and delivered to avoid transit damage?
+
KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What capacity or specification of KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head should I choose?
+
The right KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head?
+
Installation requirements vary by KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if KBS 2 HP 12 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 100 ft Head shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
