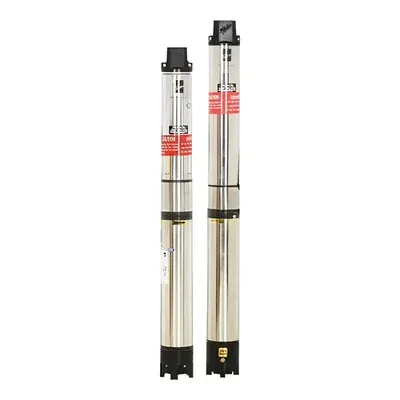

Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010)
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 28 kg |
| Flow Rate | 240 lpm |
| Head | 64 meter |
| Model No. | KS4HF-2010 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.50 kW |
| Electricity Connection | Three Phase |
| Type Of Cooling | Water Filled |
| Rated Current | 4.8 Amp |
| Borewell Size | 4 Inch (100 mm) |
| Outlet Size | 50 mm |
| No. of Stages | 10 |
| Max. Head | 64 Meters (210 Feet) |
| Max. Discharge Rate | 240 LPM (14400 LPH) |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
| Suction | Cast Iron |
About Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010)
The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage. Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 28 kg |
| Flow Rate | 240 lpm |
| Head | 64 meter |
| Model No. | KS4HF-2010 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.50 kW |
| Electricity Connection | Three Phase |
| Type Of Cooling | Water Filled |
| Rated Current | 4.8 Amp |
| Borewell Size | 4 Inch (100 mm) |
FAQs related to Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010)
Does ToolHaat offer installation guidance for Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010)?
+
Installation requirements vary by Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I get bulk pricing for Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) if I need multiple units?
+
Yes — Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Is a GST invoice provided for Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) purchases?
+
Yes, every Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
How is Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) packaged and delivered to avoid transit damage?
+
Kirloskar 2 HP 10 Stage(4 Inch) Three Phase Water Cooled Submersible Pump, 210 ft Max. Head (KS4HF-2010) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
