Kirloskar · SKU: thwpm290

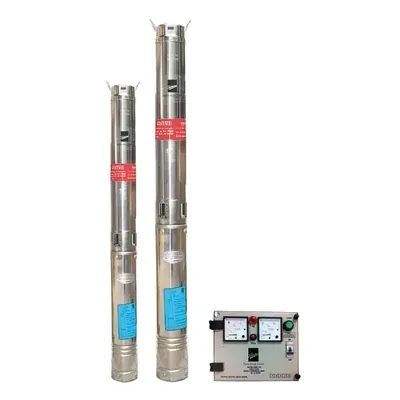

Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S)
In Stock
₹37,817₹49,498-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 28.592 kg |
| Flow Rate | 100 lpm |
| Head | 123 meter |
| Model No. | KU4-0718S |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| With Control Panel | Yes |
| Wattage | 1.5 kW |
| No. of Stages | 18 |
| Outlet Size | 32 mm |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Current Rating | 12.5 Amp |
| Boring Size | 4 Inch (100 mm) |
| Head Range | 123 Meter (403 Feet) |
| Discharge Rate | 100 LPM (6000 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Brushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Stainless Steel |
| Suction | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S)
Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Constructed with special grade engineering materials, compact designs for ease of handling and installation. Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions. Motor with ball bearings are suitable for horizontal installation for water transfer at high heads in residential complex.
Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 28.592 kg |
| Flow Rate | 100 lpm |
| Head | 123 meter |
| Model No. | KU4-0718S |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| With Control Panel | Yes |
| Wattage | 1.5 kW |
| No. of Stages | 18 |
| Outlet Size | 32 mm |
| Power Supply | 220V, 50 Hz, AC Supply |
FAQs related to Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S)
What if Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I compare multiple brands of Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) should I choose?
+
The right Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) if I need multiple units?
+
Yes — Kirloskar 2 HP 18 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 403 ft Head (KU4-0718S) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
