Kirloskar · SKU: thwpm474

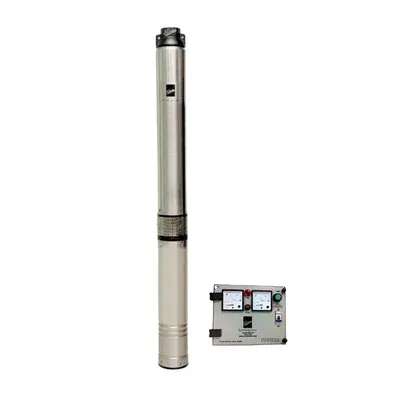

Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016)
In Stock
₹21,284₹27,656-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 22.6 kg |
| Flow Rate | 100 lpm |
| Head | 127 meter |
| Model No. | KP4 JALRAAJ UVA 60-2016 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Motor Power | 1.5 kW |
| No. of Stages | 16 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Outlet Size | 38 mm |
| Current Rating | 11 Amp |
| Boring Size | 10 Cm (4 inch) |
| Max. Head | 416 Feet (127 Meters) |
| Max. Discharge Rate | 100 LPM (6000 LPH) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016)
The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage. Resulting in lesser vibrations and longer trouble-free operation. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Constructed with special grade engineering materials, compact designs for ease of handling and installation. Minimal drop in efficiency during entire operating range, resulting in lower operating cost. High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 22.6 kg |
| Flow Rate | 100 lpm |
| Head | 127 meter |
| Model No. | KP4 JALRAAJ UVA 60-2016 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Motor Power | 1.5 kW |
| No. of Stages | 16 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
FAQs related to Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016)
Can contractors or dealers set up recurring bulk orders for Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I compare multiple brands of Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
How is Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) packaged and delivered to avoid transit damage?
+
Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I get bulk pricing for Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) if I need multiple units?
+
Yes — Kirloskar 2 HP 16 Stage 4 Inch 1Ph Oil Filled Submersible Pump With CP, 416 ft Head (KP4 JALRAAJ UVA 60-2016) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
