Lubi · SKU: thwpm215

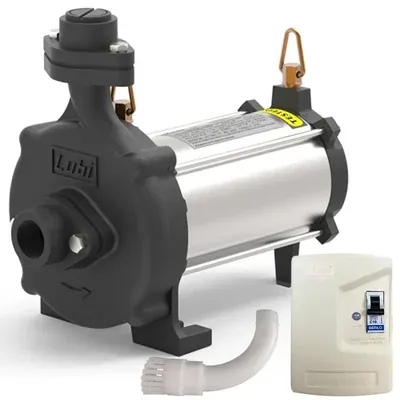

Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE)
In Stock
₹10,295₹15,999-36% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Lubi |
| Power | 1 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 204 lpm |
| Head | 28 meter |
| Model No | LHL-151CE |
| Product Type | Horizontal Openwell Submersible Pumpsets |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt (±10%), 50 Hz |
| Speed | 2880 RPM |
| Winding | PVC / Polyester insulted, water cooled |
| Head Range | 10 to 28 Meter (32 to 91 Feet) |
| Discharge Range | 204 to 60 LPM (12240 to 3600 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Motor Body | Cast Iron / Stainless Steel |
| Impeller | Graded Cast Iron & Dynamically balanced. |
| Casing | High grade Cast Iron. |
| Wear Rings | High quality abrasion resistance Bronze. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE)
Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings. Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation. Leaded Bronze and Stainless Steel, Water Lubricated, having high load bearing capacity Carbon Vs Stainless Steel and water lubricated to withstand high axial thrust loads. Adequately sized to accommodate expansion of water inside the motor and prevent loss cooling water Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. Designed so that no borewell water with sand can enter the motor.
Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 204 lpm |
| Head | 28 meter |
| Model No | LHL-151CE |
| Product Type | Horizontal Openwell Submersible Pumpsets |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt (±10%), 50 Hz |
| Speed | 2880 RPM |
| Winding | PVC / Polyester insulted, water cooled |
| Head Range | 10 to 28 Meter (32 to 91 Feet) |
FAQs related to Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE)
What if Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can contractors or dealers set up recurring bulk orders for Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I get bulk pricing for Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) if I need multiple units?
+
Yes — Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) should I choose?
+
The right Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I compare multiple brands of Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) before purchasing?
+
Yes — ToolHaat lists Lubi 1 HP Single Phase Openwell Submersible Pumpset With Controller, 28 m Max. Head, 25 x 25 mm (LHL-151CE) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
