CRI · SKU: thwpm198

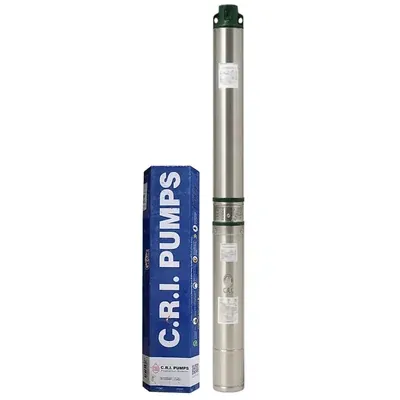

CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
In Stock
₹18,116₹20,999-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1 hp |
| Weight (Approx.) | 18 kg |
| Flow Rate | 84 lpm |
| Head | 71 meter |
| Model No. | CRI4R-3E/09 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 9 |
| Outlet Size | 32 mm |
| Head Range | 71 to 32 Meter (232 to 104 Feet) |
| Discharge Range | 0 to 84 LPM (0 to 5040 LPH) |
| Cooling Type | Water Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 5 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1 hp, weight (approx.) 18 kg, flow rate 84 lpm, head 71 meter, model no. CRI4R-3E/09. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 18 kg |
| Flow Rate | 84 lpm |
| Head | 71 meter |
| Model No. | CRI4R-3E/09 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 9 |
| Outlet Size | 32 mm |
| Head Range | 71 to 32 Meter (232 to 104 Feet) |
FAQs related to CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
Can I get bulk pricing for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) if I need multiple units?
+
Yes — CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Is a GST invoice provided for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) purchases?
+
Yes, every CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) should I choose?
+
The right CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I compare multiple brands of CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) before purchasing?
+
Yes — ToolHaat lists CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Water Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
