CRI · SKU: thwpm201

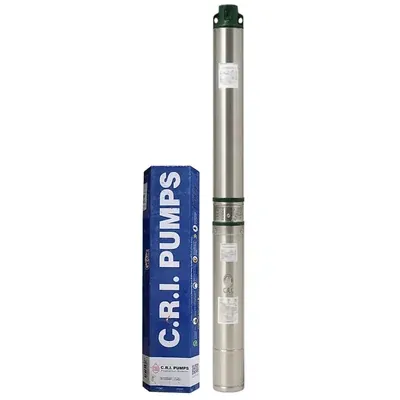

CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
In Stock
₹13,463₹15,999-16% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1 hp |
| Weight (Approx.) | 16 kg |
| Flow Rate | 84 lpm |
| Head | 71 meter |
| Model No. | CRI4R-3E/09 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 9 |
| Outlet Size | 32 mm |
| Head Range | 71 to 32 Meter (232 to 104 Feet) |
| Discharge Range | 0 to 84 LPM (0 to 5040 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 5 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1 hp, weight (approx.) 16 kg, flow rate 84 lpm, head 71 meter, model no. CRI4R-3E/09. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 16 kg |
| Flow Rate | 84 lpm |
| Head | 71 meter |
| Model No. | CRI4R-3E/09 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 9 |
| Outlet Size | 32 mm |
| Head Range | 71 to 32 Meter (232 to 104 Feet) |
FAQs related to CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)
Can contractors or dealers set up recurring bulk orders for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I compare multiple brands of CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) before purchasing?
+
Yes — ToolHaat lists CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Are spare parts and accessories for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09), so replacement parts can be sourced without needing to buy a full new unit.
Does CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) come with a manufacturer warranty?
+
Warranty coverage for CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What capacity or specification of CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) should I choose?
+
The right CRI 1 HP 9 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 71 m Head (ZUNO, CRI4R-3E/09) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
