Kirloskar · SKU: thwpm240

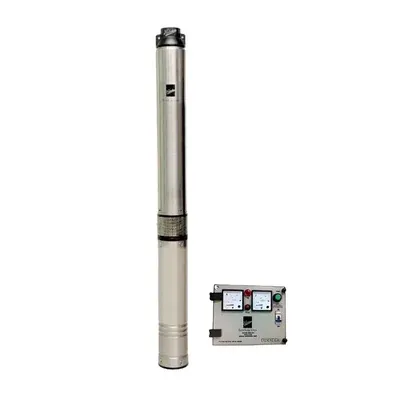

Kirloskar 1 HP 8Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 210 ft Head (KP4 JALRAAJ UVA 60-1008)
In Stock
₹15,146₹19,505-22% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 100 lpm |
| Head | 64 meter |
| Model No. | KP4 JALRAAJ UVA 60-1008 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Wattage | 0.75 kW |
| No. of Stages | 8 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Outlet Size | 32 mm |
| Current Rating | 6.7 Amp |
| Boring Size | 10 Cm (4 inch) |
| Max. Head | 210 Feet (64 Meter) |
| Max. Discharge Rate | 100 LPM (6000 LPH) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 8Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 210 ft Head (KP4 JALRAAJ UVA 60-1008)
The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage. Resulting in lesser vibrations and longer trouble-free operation. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Constructed with special grade engineering materials, compact designs for ease of handling and installation. Minimal drop in efficiency during entire operating range, resulting in lower operating cost. High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Kirloskar 1 HP 8Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 210 ft Head (KP4 JALRAAJ UVA 60-1008) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 100 lpm |
| Head | 64 meter |
| Model No. | KP4 JALRAAJ UVA 60-1008 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Wattage | 0.75 kW |
| No. of Stages | 8 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
