CROMPOWER · SKU: thwpm388

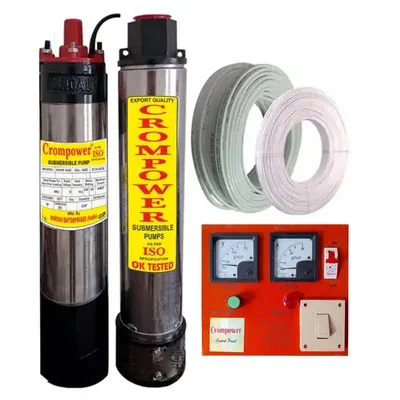

CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire
In Stock
₹6,543₹8,000-18% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CROMPOWER |
| Power | 1 hp |
| Weight (Approx.) | 17.900 kg |
| Flow Rate | 90 lpm |
| Head | 44 meter |
| Product Type | Borewell Submersible Pump |
| No of Stages | 8 Stage |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt, 50 Hz |
| Bore Size | 100 mm/ 4 inch |
| Head Range for Non Over Loading | 144 Feet |
| Delivery Pipe Inner Size | 32mm |
| Cooling Type | Oil Cooled |
| Full Load Current | 7 Amp. |
| Winding Material | Aluminium |
| Category | B |
| Duty | Continuous (S1) |
| Face | 1 |
| Connection | CAP |
| Condition | 36 MFD |
| Motor Body Material | SS Pipe |
| Motor Shaft Material | MS Steel |
| Pump Housing Material | SS Pipe |
| Impeller Material | Kora 4 Plastic |
| Pump Shaft Material | MS Steel |
| Submersible Pump Warranty | 1 Year Warranty on Manufacturing Defects. |
| Accessories Warranty | 3 Months Warranty on the control panel's condenser. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire
CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CROMPOWER. Key specifications include power 1 hp, weight (approx.) 17.900 kg, flow rate 90 lpm, head 44 meter, product type Borewell Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17.900 kg |
| Flow Rate | 90 lpm |
| Head | 44 meter |
| Product Type | Borewell Submersible Pump |
| No of Stages | 8 Stage |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt, 50 Hz |
| Bore Size | 100 mm/ 4 inch |
| Head Range for Non Over Loading | 144 Feet |
| Delivery Pipe Inner Size | 32mm |
| Cooling Type | Oil Cooled |
FAQs related to CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire
How is CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire packaged and delivered to avoid transit damage?
+
CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does ToolHaat offer installation guidance for CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire?
+
Installation requirements vary by CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I get bulk pricing for CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire if I need multiple units?
+
Yes — CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Is a GST invoice provided for CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire purchases?
+
Yes, every CROMPOWER 1 HP 8 Stage 1Phase (V4) Oil Cooled Submersible Pump With CP, 30 m Cable & 30 m Safety Wire order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
