KBS · SKU: thwpm367

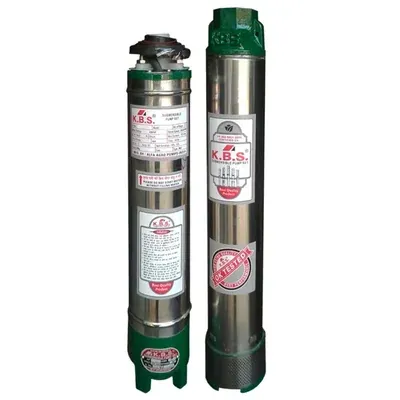

KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
In Stock
₹6,781₹9,589-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1 hp |
| Weight (Approx.) | 14.4 kg |
| Flow Rate | 80 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 0.75 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 300 Feet (91 Meter) |
| Max. Flow/Discharge Rate | 80 LPM (4800 LPH) |
| Pipe Size (Suction x Delivery) | 25x25 mm (1 x 1 inch) |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 1 hp, weight (approx.) 14.4 kg, flow rate 80 lpm, head 91 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 14.4 kg |
| Flow Rate | 80 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 0.75 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
FAQs related to KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
Is a GST invoice provided for KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head purchases?
+
Yes, every KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head?
+
Yes — contractors and dealers regularly use ToolHaat for recurring KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head should I choose?
+
The right KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head, so replacement parts can be sourced without needing to buy a full new unit.
Does KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head come with a manufacturer warranty?
+
Warranty coverage for KBS 1 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
