Kirloskar · SKU: thwpm239

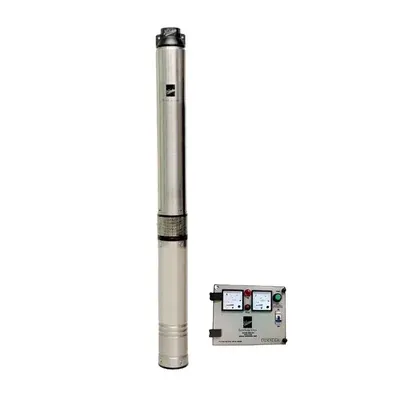

Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010)
In Stock
₹15,344₹22,400-31% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 17.3 kg |
| Flow Rate | 100 lpm |
| Head | 79 meter |
| Model No. | KP4 JALRAAJ UVA 60-1010 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Wattage | 0.75 kW |
| No. of Stages | 10 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Outlet Size | 32 mm |
| Current Rating | 6.7 Amp |
| Boring Size | 10 Cm (4 inch) |
| Head Range | 259 Feet (79 Meters) |
| Discharge Rate | 100 LPM (6000 LPH) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010)
The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage. Resulting in lesser vibrations and longer trouble-free operation. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Constructed with special grade engineering materials, compact designs for ease of handling and installation. Minimal drop in efficiency during entire operating range, resulting in lower operating cost. High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17.3 kg |
| Flow Rate | 100 lpm |
| Head | 79 meter |
| Model No. | KP4 JALRAAJ UVA 60-1010 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Wattage | 0.75 kW |
| No. of Stages | 10 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
FAQs related to Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010)
Does ToolHaat offer installation guidance for Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010)?
+
Installation requirements vary by Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
How is Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) packaged and delivered to avoid transit damage?
+
Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Is a GST invoice provided for Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) purchases?
+
Yes, every Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 10Stage 10 cm 1Ph Oil Filled Submersible Pump With CP, 259 ft Head (KP4 JALRAAJ UVA 60-1010), so replacement parts can be sourced without needing to buy a full new unit.
