CRI · SKU: thwpm170

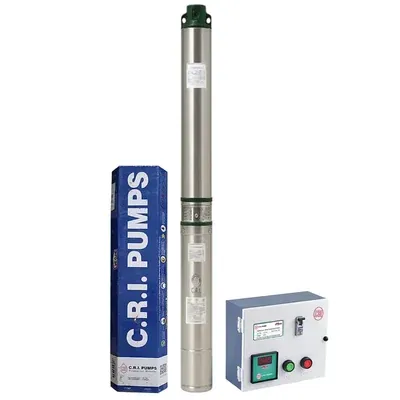

CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10)
In Stock
₹15,245₹18,999-20% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1 hp |
| Weight (Approx.) | 19 kg |
| Flow Rate | 84 lpm |
| Head | 77 meter |
| Model No. | CRI4R-3E/10 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 10 |
| Outlet Size | 32 mm |
| Head Range | 77 to 19 Meter (252 to 62 Feet) |
| Discharge Range | 0 to 84 LPM (0 to 5040 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 5 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10)
CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1 hp, weight (approx.) 19 kg, flow rate 84 lpm, head 77 meter, model no. CRI4R-3E/10. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 19 kg |
| Flow Rate | 84 lpm |
| Head | 77 meter |
| Model No. | CRI4R-3E/10 |
| Series | ZUNO |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 10 |
| Outlet Size | 32 mm |
| Head Range | 77 to 19 Meter (252 to 62 Feet) |
FAQs related to CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10)
What capacity or specification of CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) should I choose?
+
The right CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
What if CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I compare multiple brands of CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) before purchasing?
+
Yes — ToolHaat lists CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Is a GST invoice provided for CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) purchases?
+
Yes, every CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring CRI 1 HP 10 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 77 m Head (ZUNO, CRI4R-3E/10) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
