Kirloskar · SKU: thwpm82

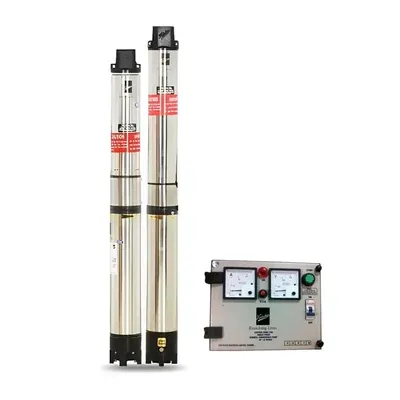

Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP)
In Stock
₹34,154₹44,380-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 22 kg |
| Flow Rate | 47 lpm |
| Head | 168 meter |
| Model No. | NEO 25-1525 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.10 kW |
| No Of Stages | 25 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 11.5 Amp. |
| Head Range | 168 Meter (551 Feet) |
| Discharge Range | 47 LPM (2820 LPH) |
| Borewell Size | 100 mm (4 inch) |
| Cooling Type | Water Cooled |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP)
Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage Resulting in lesser vibrations and longer trouble-free operation High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life. The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life. Easy availability of spares and prompt after sales services through nationwide company authorised service centers.
Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 22 kg |
| Flow Rate | 47 lpm |
| Head | 168 meter |
| Model No. | NEO 25-1525 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.10 kW |
| No Of Stages | 25 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 11.5 Amp. |
FAQs related to Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP)
Is a GST invoice provided for Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) purchases?
+
Yes, every Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
What capacity or specification of Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) should I choose?
+
The right Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP)?
+
Installation requirements vary by Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 25 Stage(4 Inch) 1Phase Water Cooled Submersible Pump With CP, 551 ft Head (NEO 25-1525 CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
