CRI · SKU: thwpm81

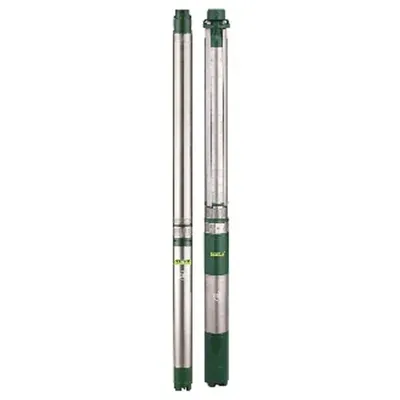

CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24)
In Stock
₹26,828₹29,999-11% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1.5 hp |
| Weight (Approx.) | 18.9 kg |
| Flow Rate | 54 lpm |
| Head | 105 meter |
| Model No. | CRI3R-31/24 |
| Series | LENA |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 24 |
| Outlet Size | 32 mm |
| Head Range | 105 to 50 Meter (344 to 164 Feet) |
| Discharge Range | 0 to 54 LPM (0 to 3240 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 80 mm (3 inch) |
| Winding Material | Copper |
| Speed | 2800 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24)
CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1.5 hp, weight (approx.) 18.9 kg, flow rate 54 lpm, head 105 meter, model no. CRI3R-31/24. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 18.9 kg |
| Flow Rate | 54 lpm |
| Head | 105 meter |
| Model No. | CRI3R-31/24 |
| Series | LENA |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 24 |
| Outlet Size | 32 mm |
| Head Range | 105 to 50 Meter (344 to 164 Feet) |
FAQs related to CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24)
Can I get bulk pricing for CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) if I need multiple units?
+
Yes — CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) should I choose?
+
The right CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24)?
+
Installation requirements vary by CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) packaged and delivered to avoid transit damage?
+
CRI 1.5 HP 24 Stage 3 Inch (V3) 1Phase Water Filled Submersible Pump, 105 m Head (LENA, CRI3R-31/24) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
