Kirloskar · SKU: thwpm110

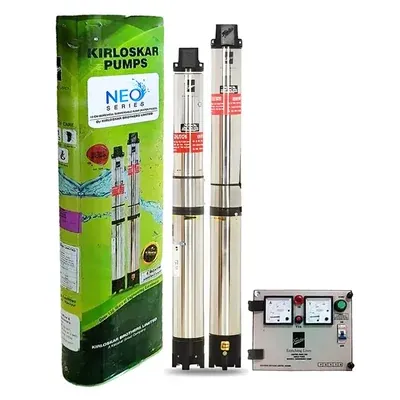

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP)
In Stock
₹27,719₹36,281-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 30 kg |
| Flow Rate | 48 lpm |
| Head | 140 meter |
| Model No. | NEO 30-1520 CP |
| Product Name | Borewell Submersible Pump |
| With Control Panel | Yes |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.1 kW |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
| Protection | IP 68 |
| No. of Stages | 20 |
| Outlet Size | 32 mm |
| Borewell Size | 100 mm (4 inch) |
| Max. Head | 459 Feet (140 meters) |
| Max. Discharge Rate | 48 LPM (2880 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP)
The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage Resulting in lesser vibrations and longer trouble-free operation High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life. The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years. Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life. Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers
Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 30 kg |
| Flow Rate | 48 lpm |
| Head | 140 meter |
| Model No. | NEO 30-1520 CP |
| Product Name | Borewell Submersible Pump |
| With Control Panel | Yes |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.1 kW |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Filled |
FAQs related to Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP)
Does Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Does ToolHaat offer installation guidance for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP)?
+
Installation requirements vary by Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can contractors or dealers set up recurring bulk orders for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) should I choose?
+
The right Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP (NEO 30-1520 CP), so replacement parts can be sourced without needing to buy a full new unit.
