Kirloskar · SKU: thwpm89

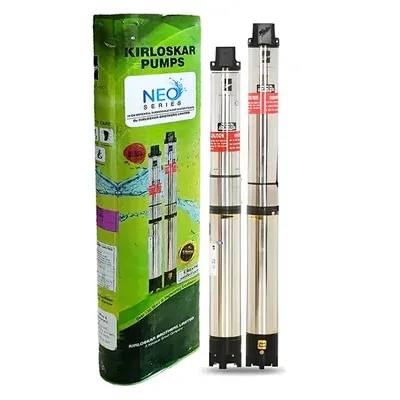

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-1520)
In Stock
₹21,284₹25,000-15% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 28 kg |
| Flow Rate | 48 lpm |
| Head | 140 meter |
| Model No. | NEO 30-1520 |
| Product Name | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.1 kW |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
| Protection | IP 68 |
| No. of Stages | 20 |
| Outlet Size | 32 mm |
| Borewell Size | 100 mm (4 inch) |
| Max. Head | 459 Feet (140 meters) |
| Max. Discharge Rate | 48 LPM (2880 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-1520)
The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage Resulting in lesser vibrations and longer trouble-free operation High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life. The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years. Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life. Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers
Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Water Cooled Submersible Pump (NEO 30-1520) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 28 kg |
| Flow Rate | 48 lpm |
| Head | 140 meter |
| Model No. | NEO 30-1520 |
| Product Name | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Wattage | 1.1 kW |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Filled |
| Insulation | Class B |
