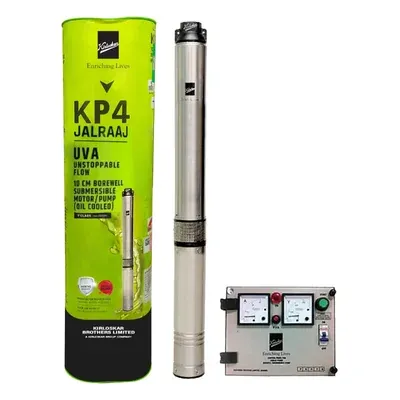

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 30-1520 CP)
Kirloskar · SKU: thwpm107

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 30-1520 CP)

In Stock
₹21,383₹25,000-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
BrandKirloskar
Power1.5 hp
Weight (Approx.)30 kg
Flow Rate52 lpm
Head145 meter
Model No.KP4 JALRAAJ UVA 30-1520 CP
Product NameBorewell Submersible Pump
With Control PanelYes
Motor Wattage1.1 kW
No. of Stages20
Power Supply220V, 50 Hz, AC Supply
Rated Current9.5 Amp.
Electricity ConnectionSingle Phase
Cooling TypeOil Filled
Outlet Size32 mm
Boring Size10 Cm (4 inch)
Max. Head475 Feet (145 Meters)
Max. Discharge Rate52 LPM (3120 LPH)
InsulationF Class
ProtectionIP 68
Winding MaterialCopper
Pump HousingStainless Steel
Pump ShaftStainless Steel
Motor HousingStainless Steel
Motor ShaftStainless Steel
Motor BearingBall Bearing
Pump BushesNBR
ImpellerNoryl
DiffuserNoryl
NRVCast Iron
SuctionCast Iron
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.

About Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 30-1520 CP)

Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. The motor is designed to withstand wide voltage variations which reduces the chances of motor burning at low voltage. Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained. Lesser chances of motor burning even if the pump operates at lower head than recommended as motor does not get overload thus ensures substantial saving from maintenance cost and breakdown. Constructed with special grade engineering materials and compact designs hence ease in handling and installation. Minimal drop in efficiency during entire operating range, resulting in lower operating cost. Motor with higher capacity shielded ball bearing suitable for operating in the horizontal position

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 30-1520 CP) specifications

Power1.5 hp
Weight (Approx.)30 kg
Flow Rate52 lpm
Head145 meter
Model No.KP4 JALRAAJ UVA 30-1520 CP
Product NameBorewell Submersible Pump
With Control PanelYes
Motor Wattage1.1 kW
No. of Stages20
Power Supply220V, 50 Hz, AC Supply
Rated Current9.5 Amp.
Electricity ConnectionSingle Phase
