Kirloskar · SKU: thwpm104

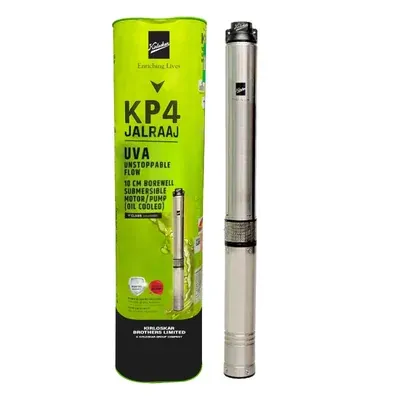

Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520)
In Stock
₹17,324₹25,974-33% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 32 kg |
| Flow Rate | 52 lpm |
| Head | 145 meter |
| Model No. | KP4 JALRAAJ UVA 30-1520 |
| Product Name | Borewell Submersible Pump |
| Motor Wattage | 1.1 kW |
| No. of Stages | 20 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Rated Current | 9.5 Amp. |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Outlet Size | 32 mm |
| Boring Size | 10 Cm (4 inch) |
| Max. Head | 475 Feet (145 Meters) |
| Max. Discharge Rate | 52 LPM (3120 LPH) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520)
Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. The motor is designed to withstand wide voltage variations which reduces the chances of motor burning at low voltage. Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained. Lesser chances of motor burning even if the pump operates at lower head than recommended as motor does not get overload thus ensures substantial saving from maintenance cost and breakdown. Constructed with special grade engineering materials and compact designs hence ease in handling and installation. Minimal drop in efficiency during entire operating range, resulting in lower operating cost. Motor with higher capacity shielded ball bearing suitable for operating in the horizontal position
Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 32 kg |
| Flow Rate | 52 lpm |
| Head | 145 meter |
| Model No. | KP4 JALRAAJ UVA 30-1520 |
| Product Name | Borewell Submersible Pump |
| Motor Wattage | 1.1 kW |
| No. of Stages | 20 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Rated Current | 9.5 Amp. |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
FAQs related to Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520)
Is a GST invoice provided for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) purchases?
+
Yes, every Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Does Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I get bulk pricing for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) if I need multiple units?
+
Yes — Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Are spare parts and accessories for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520), so replacement parts can be sourced without needing to buy a full new unit.
What capacity or specification of Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) should I choose?
+
The right Kirloskar 1.5 HP 20 Stage(4 Inch) 1Ph Oil Filled Submersible Pump (KP4 JALRAAJ UVA 30-1520) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
