KBS · SKU: thwpm365

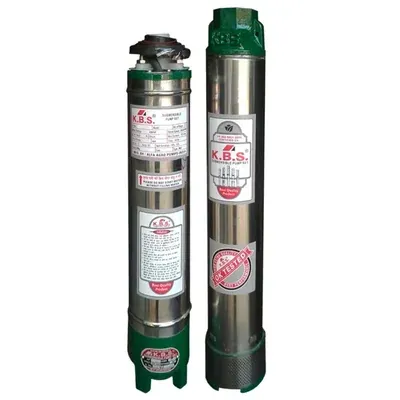

KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
In Stock
₹7,919₹11,433-31% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1.5 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 100 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 180-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 300 Feet (91 Meter) |
| Max. Flow/Discharge Rate | 100 LPM (6000 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Cooling Type | Water Cooled |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 1.5 hp, weight (approx.) 17 kg, flow rate 100 lpm, head 91 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 100 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 180-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
FAQs related to KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head
Does KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head come with a manufacturer warranty?
+
Warranty coverage for KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Does ToolHaat offer installation guidance for KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head?
+
Installation requirements vary by KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I get bulk pricing for KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head if I need multiple units?
+
Yes — KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What if KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Is a GST invoice provided for KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head purchases?
+
Yes, every KBS 1.5 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 300 ft Head order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
