KBS · SKU: thwpm364

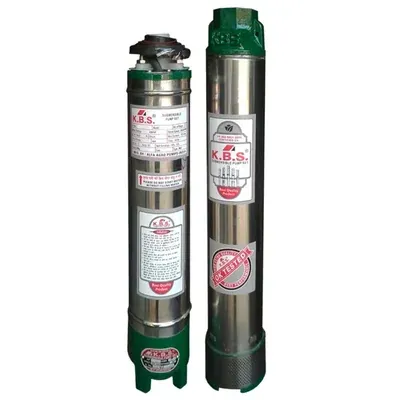

KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head
In Stock
₹6,929₹9,350-26% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1.5 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 70 lpm |
| Head | 54.86 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 150-240 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V3 Type |
| Suitable Bore Size | 3 inch (75 mm) |
| Cora | 3 |
| Max. Head Range | 180 Feet (54.86 Meter) |
| Max. Flow/Discharge Rate | 70 LPM (4200 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Stamping | 200 mm |
| Cooling Type | Water Cooled |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head
KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 1.5 hp, weight (approx.) 17 kg, flow rate 70 lpm, head 54.86 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 70 lpm |
| Head | 54.86 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 150-240 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V3 Type |
| Suitable Bore Size | 3 inch (75 mm) |
| Cora | 3 |
FAQs related to KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head
Does KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head come with a manufacturer warranty?
+
Warranty coverage for KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
How is KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head packaged and delivered to avoid transit damage?
+
KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I compare multiple brands of KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head before purchasing?
+
Yes — ToolHaat lists KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Are spare parts and accessories for KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head, so replacement parts can be sourced without needing to buy a full new unit.
What if KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if KBS 1.5 HP 15 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump, 180 ft Head shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
