CRI · SKU: thwpm66

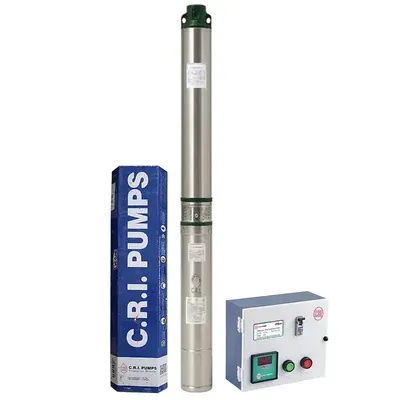

CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15)
In Stock
₹18,611₹20,999-11% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1.5 hp |
| Weight (Approx.) | 20.4 kg |
| Flow Rate | 84 lpm |
| Head | 109 meter |
| Model No. | CRI4R-3E/15 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 15 |
| Outlet Size | 32 mm |
| Head Range | 109 to 38 Meter (357 to 124 Feet) |
| Discharge Range | 0 to 84 LPM (0 to 5040 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 5 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15)
CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1.5 hp, weight (approx.) 20.4 kg, flow rate 84 lpm, head 109 meter, model no. CRI4R-3E/15. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 20.4 kg |
| Flow Rate | 84 lpm |
| Head | 109 meter |
| Model No. | CRI4R-3E/15 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 15 |
| Outlet Size | 32 mm |
| Head Range | 109 to 38 Meter (357 to 124 Feet) |
FAQs related to CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15)
Does ToolHaat offer installation guidance for CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15)?
+
Installation requirements vary by CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What capacity or specification of CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) should I choose?
+
The right CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) if I need multiple units?
+
Yes — CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) packaged and delivered to avoid transit damage?
+
CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What if CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 109 m Head (ZUNO, CRI4R-3E/15) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
