CRI · SKU: thwpm70

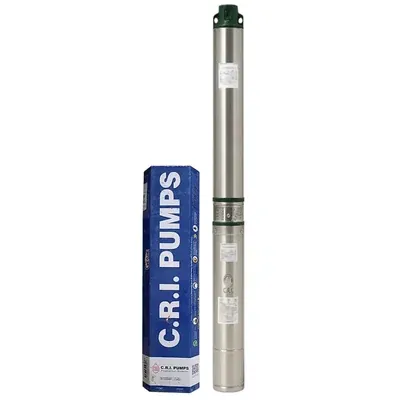

CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15)
In Stock
₹17,621₹20,999-16% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1.5 hp |
| Weight (Approx.) | 20 kg |
| Flow Rate | 84 lpm |
| Head | 109 meter |
| Model No. | CRI4R-3E/15 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 15 |
| Outlet Size | 32 mm |
| Head Range | 109 to 38 Meter (357 to 124 Feet) |
| Discharge Range | 0 to 84 LPM (0 to 5040 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 4 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15)
CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1.5 hp, weight (approx.) 20 kg, flow rate 84 lpm, head 109 meter, model no. CRI4R-3E/15. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 20 kg |
| Flow Rate | 84 lpm |
| Head | 109 meter |
| Model No. | CRI4R-3E/15 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 15 |
| Outlet Size | 32 mm |
| Head Range | 109 to 38 Meter (357 to 124 Feet) |
FAQs related to CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15)
Does CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) come with a manufacturer warranty?
+
Warranty coverage for CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I compare multiple brands of CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) before purchasing?
+
Yes — ToolHaat lists CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can I get bulk pricing for CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) if I need multiple units?
+
Yes — CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Does ToolHaat offer installation guidance for CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15)?
+
Installation requirements vary by CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CRI 1.5 HP 15 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump, 109 m Head (ZUNO, CRI4R-3E/15) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
