Santech · SKU: thwpm34

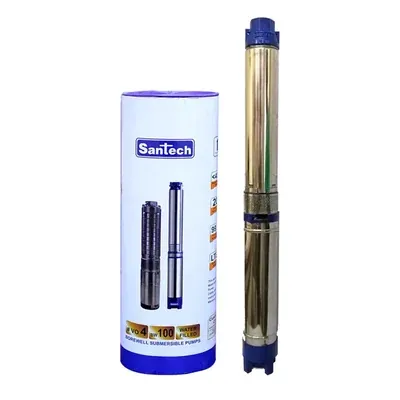

Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head
In Stock
₹10,196₹12,500-18% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Santech |
| Power | 1.5 hp |
| Weight (Approx.) | 22 kg |
| Flow Rate | 88 lpm |
| Head | 66 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Voltage | 230 Volt |
| No Of Stage | 15 |
| Pump Type | V4 |
| Borewell Size | 4 inch (100 mm) |
| Cora | 4 |
| Head Range | 45 to 66 Meter (147 to 216 Feet) |
| Discharge Range | 88 to 55 LPM |
| Pipe Size (Suction x Delivery) | 100 x 32 mm |
| ISI Certified | Yes |
| BIS Certificate Mark | IS8034:2018 |
| Motor Winding | POLYWRAP Copper Winding |
| Motor Body Material | Cast Iron |
| Motor Rotor Material | AL.DIE CAST |
| Motor Core Length | 200 mm |
| Motor Core Quality | CRNO (Cold Rolled Non-Oriented) |
| Motor Bearing Bush | LTB 4 |
| Pump Bush | LTD 4/NITRILE |
| Pump Bowl | NORYL 20% GF |
| Impeller Material | NORYL 20 % GF |
| Motor Pipe Material | Stainless Steel |
| Bearing Bush | NITRILE/LTB -4 |
| Motor Shaft Material | SS. 410 |
| Thrust Bearing Material | SS/CARBON |
| Stamping Material | ELECTRO GRADE |
| Rotor Material | ELECTRO GRADE |
| Suction/Outlet | C.I |
| Diffuser Material | Noryl 20 % GF |
| Pump Shaft Material | SS. 410 |
| Pump Pipe Material | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head
Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Santech. Key specifications include power 1.5 hp, weight (approx.) 22 kg, flow rate 88 lpm, head 66 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 22 kg |
| Flow Rate | 88 lpm |
| Head | 66 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Voltage | 230 Volt |
| No Of Stage | 15 |
| Pump Type | V4 |
| Borewell Size | 4 inch (100 mm) |
| Cora | 4 |
FAQs related to Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head
What capacity or specification of Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head should I choose?
+
The right Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Is a GST invoice provided for Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head purchases?
+
Yes, every Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
How is Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head packaged and delivered to avoid transit damage?
+
Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I get bulk pricing for Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head if I need multiple units?
+
Yes — Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Can contractors or dealers set up recurring bulk orders for Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Santech 1.5 HP 15 Stage 4 Inch (V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216 ft Head procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
