CRI · SKU: thwpm62

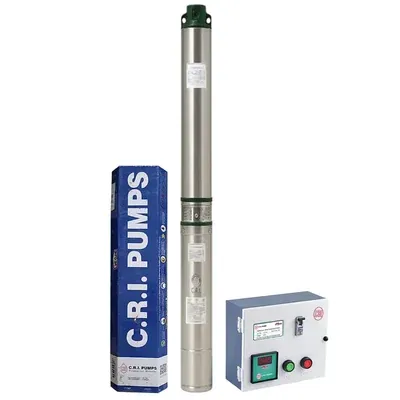

CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14)
In Stock
₹18,908₹20,999-10% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1.5 hp |
| Weight (Approx.) | 26 kg |
| Flow Rate | 72 lpm |
| Head | 110 meter |
| Model No. | CRI4F-3/14 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 14 |
| Outlet Size | 32 mm |
| Head Range | 110 to 44 Meter (360 to 144 Feet) |
| Discharge Range | 0 to 72 LPM (0 to 4320 LPH) |
| Cooling Type | Oil Cooled |
| Borewell Size | 100 mm (4 inch) |
| Star Rating | 4 Star |
| Winding Material | Copper |
| Speed | 2850 RPM |
| Degree of Protection | IP 58 |
| Direction of Rotation | Counter Clockwise from Driving End |
| Minimum Cooling Flow Along the Motor | 0.15m/sec |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start Capacitor Run/CSR |
| Maximum Start Per Hour | 20 Times |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14)
CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1.5 hp, weight (approx.) 26 kg, flow rate 72 lpm, head 110 meter, model no. CRI4F-3/14. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 26 kg |
| Flow Rate | 72 lpm |
| Head | 110 meter |
| Model No. | CRI4F-3/14 |
| Series | ZUNO |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| No. of Stages | 14 |
| Outlet Size | 32 mm |
| Head Range | 110 to 44 Meter (360 to 144 Feet) |
FAQs related to CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14)
Can I compare multiple brands of CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) before purchasing?
+
Yes — ToolHaat lists CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can I get bulk pricing for CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) if I need multiple units?
+
Yes — CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Does ToolHaat offer installation guidance for CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14)?
+
Installation requirements vary by CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Are spare parts and accessories for CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for CRI 1.5 HP 14 Stage 4 Inch (V4) 1Phase Oil Filled Submersible Pump With CP, 110 m Head (ZUNO, CRI4F-3/14), so replacement parts can be sourced without needing to buy a full new unit.
