Kirloskar · SKU: thwpm106

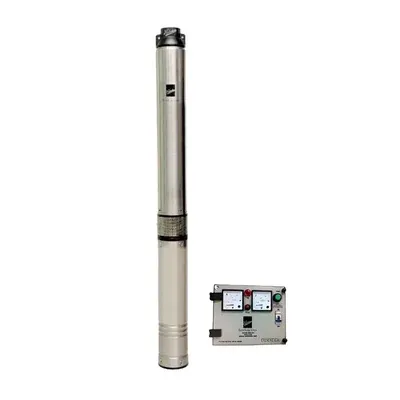

1.5HP 14 Stage 4" 1Ph Oil Filled Submersible Pump With CP, 354ft Head(KP4 JALRAAJ UVA 60-1514) — Kirloskar
In Stock
₹19,899₹25,369-22% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 21 kg |
| Flow Rate | 100 lpm |
| Head | 108 meter |
| Model No. | KP4 JALRAAJ UVA 60-1514 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Wattage | 1.1 kW |
| No. of Stages | 14 |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Delivery Size | 32 mm |
| Current Rating | 9.5 Amp |
| Boring Size | 10 Cm (4 inch) |
| Head Range | 108 Meter (354 Feet) |
| Discharge Rate | 100 LPM (6000 LPH) |
| Insulation | F Class |
| Protection | IP 68 |
| Speed | 2790 RPM |
| Min. Submergence From Bottom | 1 mm |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
⚖️
