KBS · SKU: thwpm90

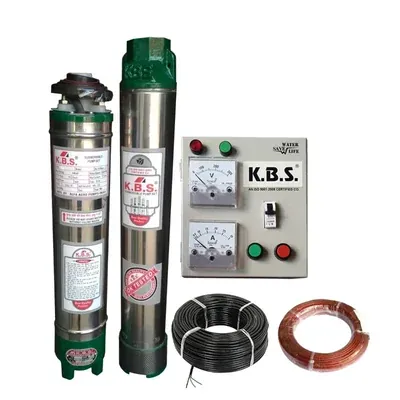

1.5Hp 12 Stage 4"(V4) 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire — KBS
In Stock
₹8,899₹12,459-29% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1.5 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 100 lpm |
| Head | 73 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 180-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 12 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 240 Feet (73 Meter) |
| Max. Flow/Discharge Rate | 100 LPM (6000 LPH) |
| Outlet Size | 32mm |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
