CRI · SKU: thwpm39

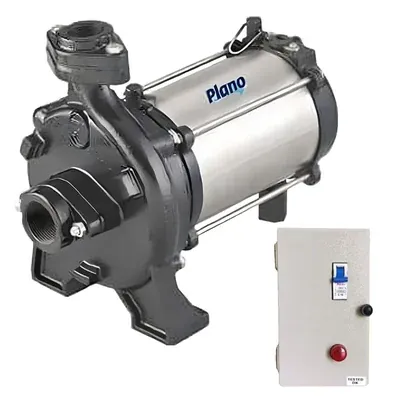

CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150)
In Stock
₹19,700₹22,999-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1.5 hp |
| Weight (Approx.) | 25.5 kg |
| Flow Rate | 168 lpm |
| Head | 39 meter |
| Model No | PLANO 150 |
| Product Type | Horizontal Openwell Submersible Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 - 240V, 50Hz, A.C. Supply |
| Head Range | 39 to 16 Meter (128 to 52.5 Feet) |
| Discharge Range | 30 to 168 LPM (1800 to 10080 LPH) |
| Winding Material | Copper |
| Outlet Size | 32 X 25 mm |
| Type of Duty | S1 (Continuous) |
| Speed | 2880 RPM |
| Motor Body | SS 304 |
| Impeller | Cast Iron/ Noryl/ SS 304/ High Tensile Brass |
| Casing | Cast Iron |
| Rear Cover | Cast Iron |
| Shaft | SS 410 |
| Front Bracket | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Diaphragm | High Nitrile Rubber |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150)
CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1.5 hp, weight (approx.) 25.5 kg, flow rate 168 lpm, head 39 meter, model no PLANO 150. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 25.5 kg |
| Flow Rate | 168 lpm |
| Head | 39 meter |
| Model No | PLANO 150 |
| Product Type | Horizontal Openwell Submersible Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 - 240V, 50Hz, A.C. Supply |
| Head Range | 39 to 16 Meter (128 to 52.5 Feet) |
| Discharge Range | 30 to 168 LPM (1800 to 10080 LPH) |
| Winding Material | Copper |
FAQs related to CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150)
Does CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) come with a manufacturer warranty?
+
Warranty coverage for CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What if CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Is a GST invoice provided for CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) purchases?
+
Yes, every CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150), so replacement parts can be sourced without needing to buy a full new unit.
How is CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) packaged and delivered to avoid transit damage?
+
CRI 1.5 HP Single Phase Openwell Submersible Pump With Control Panel, 39 m Head (PLANO 150) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
