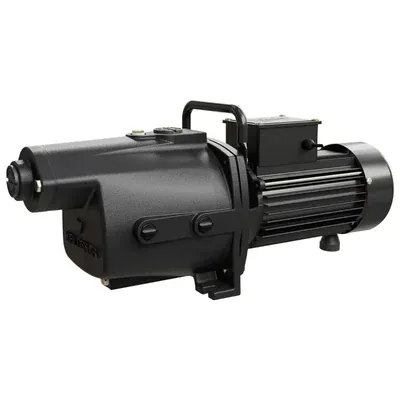

Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175)
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 18.1 kg |
| Flow Rate | 78 lpm |
| Head | 38 meter |
| Model No. | LIFTER ULTRA 175 |
| Product Type | Shallow Well Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 160 to 240 Volt, 50 Hz AC Power Supply |
| Pipe Size (Suction X Delivery) | 25X25 mm |
| Head Range | 20 to 38 Meter (65 to 124 Feet) |
| Discharge Range | 4700 to 1300 LPH (78 to 22 LPM) |
| Winding Material | Copper |
| Speed | 2800 RPM |
| Number of Stages | 1 |
| Dimension (LxWxH) | 180 X 230 X 470 mm |
| Impeller | Noryl |
| Dome | Cast Iron |
| Motor Body | Aluminium |
| Shaft | Carbon Steel |
| Seal | Carbon Ceramic |
About Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175)
Pumps are fitted with NRV that ensures efficient water flow and prevents backflow. The NRV design arrangement helps the pump to stay primed (filled with water) and ready to operate immediately when needed. The suction flange arrangement eliminates pipe unions and fittings, reducing assembly time and plumbing costs. Innovative design manufactured at a state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. Robust design withstands extreme fluctuations which ensures the reliability and the safety of the equipment and enhances its life. The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in case of low voltage. The pumps are fitted with shielded ball bearing so no external lubrication is required throughout the life cycle and also ensure low noise level. Minimum vibrations protect components from damage during the operation. Consistent performance is ensured by maintaining concentricity. Easy maintainable design and better interchangeability of components so that pumps can be serviced even at remote locations by semi-skilled technicians. A handle attached to the pump allows users to carry the pump anywhere with ease, adding to its portability and convenience of use. The pumps have suction lift capacity up to 8.5 metres with high head, allowing to pump water at high volumes for a variety of applications. All electrical parts of the pump are covered, which makes it safer to use. CED is the latest coating technology for corrosion resistance; uniform coating provides 5 times more protection over conventional painting, resulting in longer life. The hydraulic part of Kirloskar pumps is CED Coated.
Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 18.1 kg |
| Flow Rate | 78 lpm |
| Head | 38 meter |
| Model No. | LIFTER ULTRA 175 |
| Product Type | Shallow Well Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 160 to 240 Volt, 50 Hz AC Power Supply |
| Pipe Size (Suction X Delivery) | 25X25 mm |
| Head Range | 20 to 38 Meter (65 to 124 Feet) |
| Discharge Range | 4700 to 1300 LPH (78 to 22 LPM) |
FAQs related to Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175)
Can I compare multiple brands of Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can contractors or dealers set up recurring bulk orders for Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Are spare parts and accessories for Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175)?
+
Installation requirements vary by Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Is a GST invoice provided for Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) purchases?
+
Yes, every Kirloskar 1.5 HP Single Phase Copper Winding Shallow Well Pump, 38 m Head, 25 x 25 mm (LIFTER ULTRA 175) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
