Crompton · SKU: thwpm40

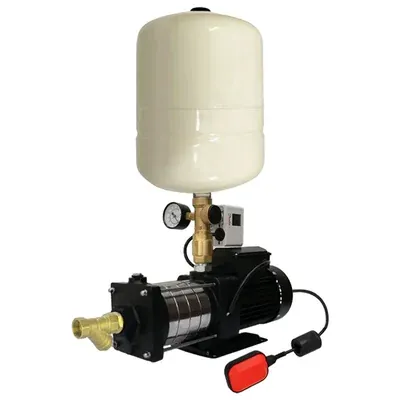

1.5 Hp Single Phase Booster Pump With 24L Tank For 6 Bathrooms, SS Impeller (CFCHM6E1.5B-V24) — Crompton
In Stock
₹36,299₹45,000-19% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Crompton |
| Power | 1.5 hp |
| Weight (Approx.) | 25 kg |
| Flow Rate | 132 lpm |
| Head | 50 meter |
| Model No. | CFCHM6E1.5B-V24 |
| Product Type | Water Pressure Booster Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Pipe Size (Suction X Delivery) | 32 X 25 mm |
| Tank Size | 24 Liter |
| Head Range | 10 to 50 Meter (33 to 164 Feet) |
| Discharge Range | 132 to 31 LPM (7920 to 1860 LPH) |
| Recommended Pressure Setting | 2.5 to 4.5 Bar |
| No. of Bathrooms Recommended | 6 Bathrooms |
| Impeller | Stainless Steel- Grade SS304 |
| Diffuser Bowl | Stainless Steel- Grade SS304 |
| Motor Body Material | Aluminium Extruded- Grade HE9 |
| Shaft | Stainless Steel- Grade SS431 |
| Winding Material | Copper Winding |
| Delivery Casing | Cast Iron-IS210 Grade FG 200 |
| Y Strainer | Brass |
| Fan | NYLON 6 |
| Fan Cover | PP GF 30% |
| Noiseless Operation | Pump noise is less than 60db. |
| Dry Run Protection | Provided by using float switch. |
| Constant Pressure Application | Gives constant pressure at all taps. |
⚖️
