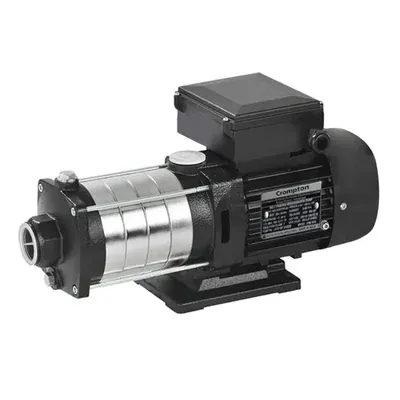

1.5 Hp 6 Stage Single Phase Booster Pump, For 6 Bathrooms, SS Impeller (CHM6E1.5(1PH)B-49) — Crompton
Crompton · SKU: thwpm279

1.5 Hp 6 Stage Single Phase Booster Pump, For 6 Bathrooms, SS Impeller (CHM6E1.5(1PH)B-49) — Crompton

In Stock
₹22,999₹23,650-3% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
BrandCrompton
Power1.5 hp
Weight (Approx.)26 kg
Flow Rate177 lpm
Head49 meter
Model No.CHM6E1.5(1PH)B-49
Product TypeWater Pressure Booster Pump
Wattage1.1 kW
Electricity ConnectionSingle Phase
No Of Stages6
Pipe Size (Suction X Delivery)32 X 25 mm
Head Range20 to 49 Meter (66 to 160 Feet)
Discharge Range177 to 33 LPM (10620 to 1980 LPH)
No. of Bathrooms Recommended6 Bathrooms
ImpellerStainless Steel-SS304
Diffuser BowlStainless Steel-SS304
Motor Body MaterialAluminium Extruded-HE9 Grade
ShaftStainless Steel-SS410
Stamping MaterialCRNGO M47
End ShieldAluminium ADC12
Delivery CasingCast Iron-IS210 Grade FG 200
FanNYLON 6
Fan CoverPP GF 30%
Mechanical SealTungsten Carbide Vs Sintered carbon + Viton Rubber (FKM)
Top FittedMotor fitted with Thermal Overload Protector (TOP)
Easy for MaintenanceEasily replaceable wear & tear Parts.
Constant Pressure ApplicationGives constant pressure at all taps.
⚖️
