Gemston · SKU: thwpm55

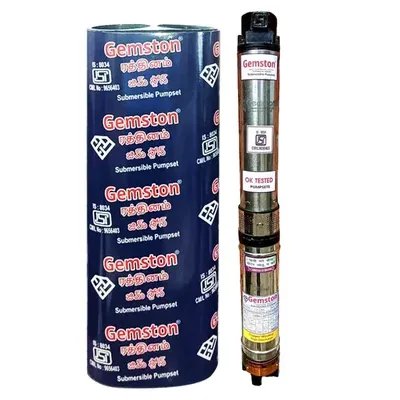

Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH
In Stock
₹7,919₹8,899-11% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Gemston |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 8 Amp |
| No Of Stages | 12 |
| Cora | 5 |
| Type | V-4 |
| Delivery | 1.25 Inch (31.75 mm) |
| Max. Head | 48 Meter (158 Feet) |
| Max. Discharge Rate | 5000 LPH (83 LPM) |
| Borewell Size | 100 mm (4 Inch) |
| Outlet Pipe Size | 1.5 Inch (38.1 mm) |
| Winding Material | 100% Copper |
| Cooling Type | Water Filled |
| Thrust Bearing | Carbon |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
| IS | 8034 |
| CM/L | 9656403 |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH
Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Gemston. Key specifications include product type Submersible Pump, wattage 1.1 kW, electricity connection Single Phase, rated voltage range 160-220 Volt, 50 Hz, AC Power Supply, current rating 8 Amp. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH specifications
| Product Type | Submersible Pump |
|---|---|
| Wattage | 1.1 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 8 Amp |
| No Of Stages | 12 |
| Cora | 5 |
| Type | V-4 |
| Delivery | 1.25 Inch (31.75 mm) |
| Max. Head | 48 Meter (158 Feet) |
| Max. Discharge Rate | 5000 LPH (83 LPM) |
| Borewell Size | 100 mm (4 Inch) |
FAQs related to Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH
Does Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH come with a manufacturer warranty?
+
Warranty coverage for Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What capacity or specification of Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH should I choose?
+
The right Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Is a GST invoice provided for Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH purchases?
+
Yes, every Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Does ToolHaat offer installation guidance for Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH?
+
Installation requirements vary by Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH packaged and delivered to avoid transit damage?
+
Gemston 1.5 HP 12 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 48 m Max. Head, 5000 LPH is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
