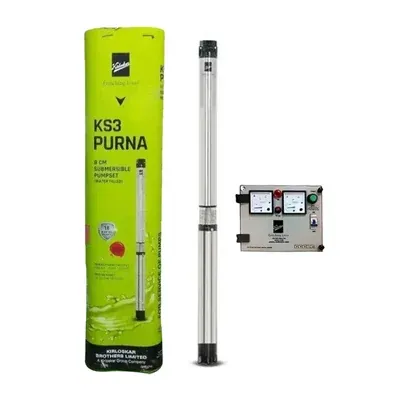

Kirloskar 1.25 HP 12 Stage 8 cm 1Ph Water Filled Submersible Pump With CP, 170 ft Head (KS3 PURNA 60-1312)
| Brand | Kirloskar |
| Power | 0.93 kw |
| Weight (Approx.) | 23 kg |
| Flow Rate | 95 lpm |
| Head | 52 meter |
| Model No. | KS3 PURNA 60-1312 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Power Source | Corded Electric |
| Wattage | 0.93 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Water Filled |
| Current Rating | 9.7 Amp |
| Boring Size | 3 Inch (8 Cm) |
| Max. Head | 52 Meter (170 Feet) |
| Max. Discharge Rate | 95 LPM (5700 LPH) |
| Outlet Size | 32 mm |
| No. of Stages | 12 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
About Kirloskar 1.25 HP 12 Stage 8 cm 1Ph Water Filled Submersible Pump With CP, 170 ft Head (KS3 PURNA 60-1312)
The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Kirloskar 1.25 HP 12 Stage 8 cm 1Ph Water Filled Submersible Pump With CP, 170 ft Head (KS3 PURNA 60-1312) specifications
| Power | 0.93 kw |
|---|---|
| Weight (Approx.) | 23 kg |
| Flow Rate | 95 lpm |
| Head | 52 meter |
| Model No. | KS3 PURNA 60-1312 |
| Product Type | Borewell Submersible Pump |
| With Control Panel | Yes |
| Power Source | Corded Electric |
| Wattage | 0.93 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Water Filled |
