Havells · SKU: thwpm248

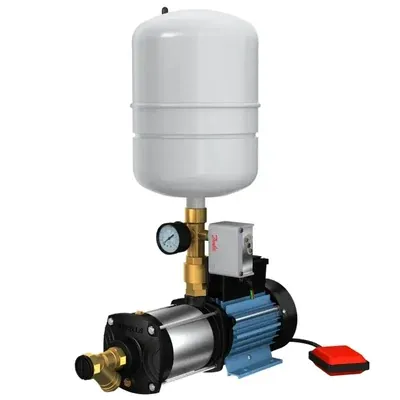

Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24)
In Stock
₹24,749₹34,999-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Power | 1 hp |
| Weight (Approx.) | 18.7 kg |
| Flow Rate | 65 lpm |
| Head | 44 meter |
| Model No. | HMPM2-5100-V24 |
| Product Name | Pressure Booster Pump |
| Wattage | 0.75 kW |
| Rated Voltage | 180 V - 260 V |
| Electricity Connection | Single Phase |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Total Head Range | 15 to 44 meters (49 to 144 feet) |
| Max. Flow Rate | 65 to 23 LPM (3900 to 1380 LPH) |
| Recommended Faucets | 1-4 Outlets |
| Winding Type | Copper winding |
| Cable Length and Size | 0.3 m & 1.0 sq. mm |
| Direction of Rotating | Clockwise when viewed from fan cover side |
| Motor Body | High quality extruded aluminium |
| Motor Stator | Low watt loss stamping |
| Pump Casing | Cast iron |
| Shaft | SS 410 |
| Impeller | Noryl |
| Operating Water Temperature | Up to 50 °C |
| Motor Speed | 2880 Revolution per minute |
| Insulation Class | Class F |
| Pump Shaft | High Grade SS410 shaft |
| Pump Casting | CED coated Pump Castings (FG-200 grade) for long life. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24)
Motor design is compact. It protects motor from winding burning due to wide voltage fluctuations. Dual coated F Class copper winding wires gives high motor efficiency. Winding wires can withstand high temperature and motor winding is protected from burning. Most of the pumps available in market have ordinary enameled copper wire or aluminum wire windings making them inefficient.
Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 18.7 kg |
| Flow Rate | 65 lpm |
| Head | 44 meter |
| Model No. | HMPM2-5100-V24 |
| Product Name | Pressure Booster Pump |
| Wattage | 0.75 kW |
| Rated Voltage | 180 V - 260 V |
| Electricity Connection | Single Phase |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Total Head Range | 15 to 44 meters (49 to 144 feet) |
| Max. Flow Rate | 65 to 23 LPM (3900 to 1380 LPH) |
FAQs related to Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24)
What if Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
How is Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) packaged and delivered to avoid transit damage?
+
Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Are spare parts and accessories for Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24)?
+
Installation requirements vary by Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) come with a manufacturer warranty?
+
Warranty coverage for Havells 1 HP Single Phase Pressure Booster Pump With 24 L Tank, For 1-4 Outlets (HMPM2-5100-V24) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
