CRI · SKU: thwpm141

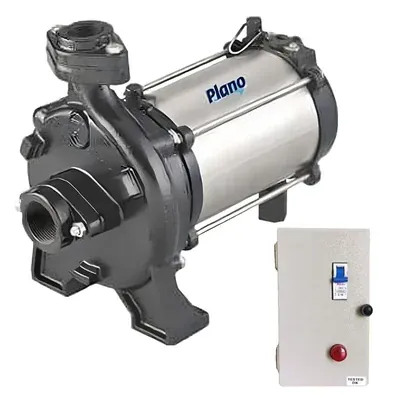

CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104)
In Stock
₹11,285₹15,999-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | CRI |
| Power | 1 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 168 lpm |
| Head | 32 meter |
| Model No | PLANO 104 |
| Product Type | Horizontal Openwell Submersible Pump |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 - 240V, 50Hz, A.C. Supply |
| Head Range | 32 to 13 Meter (105 to 42.7 Feet) |
| Discharge Range | 18 to 168 LPM (1080 to 10080 LPH) |
| Winding Material | Copper |
| Outlet Size | 25 X 25 mm |
| Type of Duty | S1 (Continuous) |
| Speed | 2880 RPM |
| Motor Body | SS 304 |
| Impeller | Noryl |
| Casing | Cast Iron |
| Rear Cover | Cast Iron |
| Shaft | SS 410 |
| Front Bracket | Cast Iron |
| Shaft Seal | Nitrile Butyl Rubber |
| Diaphragm | High Nitrile Rubber |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104)
CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by CRI. Key specifications include power 1 hp, weight (approx.) 17 kg, flow rate 168 lpm, head 32 meter, model no PLANO 104. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 168 lpm |
| Head | 32 meter |
| Model No | PLANO 104 |
| Product Type | Horizontal Openwell Submersible Pump |
| Electricity Connection | Single Phase |
| Rated Voltage | 220 - 240V, 50Hz, A.C. Supply |
| Head Range | 32 to 13 Meter (105 to 42.7 Feet) |
| Discharge Range | 18 to 168 LPM (1080 to 10080 LPH) |
| Winding Material | Copper |
| Outlet Size | 25 X 25 mm |
FAQs related to CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104)
How is CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) packaged and delivered to avoid transit damage?
+
CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does ToolHaat offer installation guidance for CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104)?
+
Installation requirements vary by CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I get bulk pricing for CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) if I need multiple units?
+
Yes — CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Is a GST invoice provided for CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) purchases?
+
Yes, every CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Does CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) come with a manufacturer warranty?
+
Warranty coverage for CRI 1 HP Single Phase Openwell Submersible Pump With Control Panel, 32 m Head (PLANO 104) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
