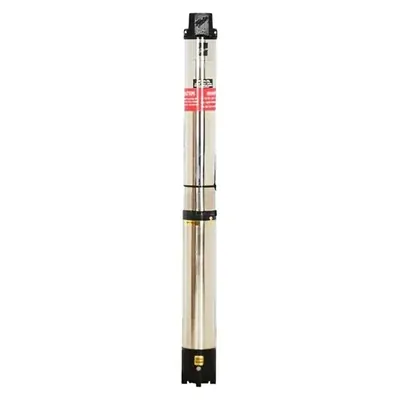

Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014)
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 24 kg |
| Flow Rate | 48 lpm |
| Head | 98 meter |
| Model No. | KS4AN-1014 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 415 V, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
| Motor Type | Water Filled |
| Boring Size | 4 Inch (100 mm) |
| Max. Head | 322 Feet (98 Meters) |
| Outlet Pipe Size | 32 mm |
| No. of Stages | 14 |
| Current Rating | 3 Amp |
| Max. Discharge Rate | 48 LPM (2880 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
About Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014)
The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage. Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 24 kg |
| Flow Rate | 48 lpm |
| Head | 98 meter |
| Model No. | KS4AN-1014 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 415 V, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
| Motor Type | Water Filled |
| Boring Size | 4 Inch (100 mm) |
FAQs related to Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014)
Is a GST invoice provided for Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) purchases?
+
Yes, every Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014), so replacement parts can be sourced without needing to buy a full new unit.
Can I compare multiple brands of Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) should I choose?
+
The right Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014)?
+
Installation requirements vary by Kirloskar 1 HP 14 Stage 4 Inch 3Phase Water Filled Submersible Pump, 322 ft Head (KS4AN-1014) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
