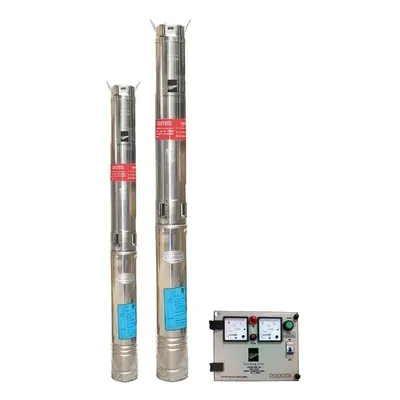

Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S)
Kirloskar · SKU: thwpm136

Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S)

In Stock
₹29,184₹38,199-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
BrandKirloskar
Power1 hp
Weight (Approx.)24 kg
Flow Rate50 lpm
Head89 meter
Model No.KU4-0314S
Product TypeBorewell Submersible Pump
Power SourceCorded Electric
With Control PanelYes
Wattage0.75 kW
No. of Stages14
Outlet Size32 mm
Power Supply220V, 50 Hz, AC Supply
Electricity ConnectionSingle Phase
Cooling TypeOil Filled
Current Rating6.7 Amp
Boring Size4 Inch (100 mm)
Max. Head89 Meter (292 Feet)
Max. Discharge Rate50 LPM (3000 LPH)
Winding MaterialCopper
Pump HousingStainless Steel
Pump ShaftStainless Steel
Motor HousingStainless Steel
Motor ShaftStainless Steel
Motor BearingBall Bearing
Pump BrushesNBR
ImpellerNoryl
DiffuserNoryl
NRVStainless Steel
SuctionStainless Steel
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.

About Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S)

Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. Constructed with special grade engineering materials, compact designs for ease of handling and installation. Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions. Motor with ball bearings are suitable for horizontal installation for water transfer at high heads in residential complex.

Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) specifications

Power1 hp
Weight (Approx.)24 kg
Flow Rate50 lpm
Head89 meter
Model No.KU4-0314S
Product TypeBorewell Submersible Pump
Power SourceCorded Electric
With Control PanelYes
Wattage0.75 kW
No. of Stages14
Outlet Size32 mm
Power Supply220V, 50 Hz, AC Supply

FAQs related to Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S)

Does ToolHaat offer installation guidance for Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S)?

+

Installation requirements vary by Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.

Can I get bulk pricing for Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) if I need multiple units?

+

Yes — Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.

What capacity or specification of Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) should I choose?

+

The right Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.

Can I compare multiple brands of Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) before purchasing?

+

Yes — ToolHaat lists Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.

Are spare parts and accessories for Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S) available separately?

+

Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 292 ft Head (KU4-0314S), so replacement parts can be sourced without needing to buy a full new unit.
