Gemston · SKU: thwpm169

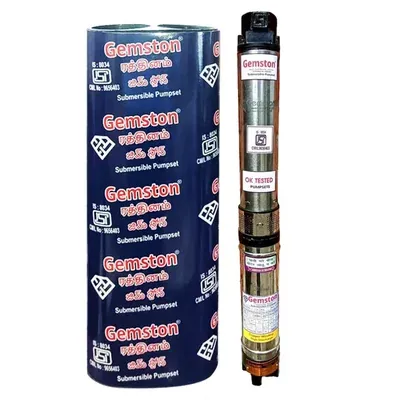

Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH
In Stock
₹6,731₹8,500-21% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Gemston |
| Product Type | Submersible Pump |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 7 Amp |
| No Of Stages | 10 |
| Cora | 4 |
| Type | V-4 |
| Delivery | 1.25 Inch (31.75 mm) |
| Max. Head | 40 Meter (132 Feet) |
| Max. Discharge Rate | 4000 LPH (67 LPM) |
| Borewell Size | 100 mm (4 Inch) |
| Outlet Pipe Size | 1.25 Inch (31.75 mm) |
| Cooling Type | Water Filled |
| Winding Material | 100% Copper |
| Thrust Bearing | Carbon |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
| IS | 8034 |
| CM/L | 9656403 |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH
Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Gemston. Key specifications include product type Submersible Pump, wattage 0.75 kW, electricity connection Single Phase, rated voltage range 160-220 Volt, 50 Hz, AC Power Supply, current rating 7 Amp. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH specifications
| Product Type | Submersible Pump |
|---|---|
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 7 Amp |
| No Of Stages | 10 |
| Cora | 4 |
| Type | V-4 |
| Delivery | 1.25 Inch (31.75 mm) |
| Max. Head | 40 Meter (132 Feet) |
| Max. Discharge Rate | 4000 LPH (67 LPM) |
| Borewell Size | 100 mm (4 Inch) |
FAQs related to Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH
How is Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH packaged and delivered to avoid transit damage?
+
Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Are spare parts and accessories for Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH, so replacement parts can be sourced without needing to buy a full new unit.
Can contractors or dealers set up recurring bulk orders for Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I get bulk pricing for Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH if I need multiple units?
+
Yes — Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH should I choose?
+
The right Gemston 1 HP 10 Stage(4 Inch) V-4 Single Phase Water Filled Submersible Pump, 40 m Max. Head, 4000 LPH depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
