GRITSON · SKU: thwpm22

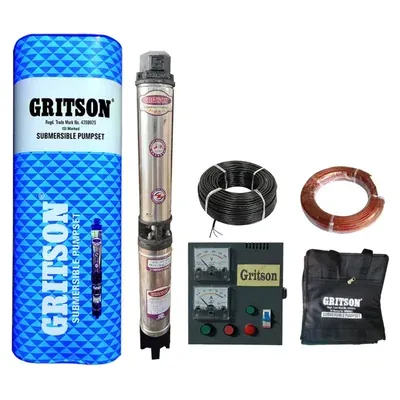

GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
In Stock
₹9,206₹13,100-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | GRITSON |
| Power | 0.75 hp |
| Weight (Approx.) | 15 kg |
| Flow Rate | 33 lpm |
| Head | 48 meter |
| Product Type | Submersible Pump |
| Wattage | 0.55 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 7 Amp |
| No Of Stages | 12 |
| Cora | 2 |
| Type | V-4 |
| Delivery | 1.25 Inch |
| Max. Head | 48 Meter (158 Feet) |
| Max. Discharge Rate | 2000 LPH (33 LPM) |
| Borewell Size | 100 mm (4 Inch) |
| Outlet Pipe Size | 1.25 Inch (31.75 mm) |
| Cooling Type | Water Filled |
| Thrust Bearing | Carbon |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by GRITSON. Key specifications include power 0.75 hp, weight (approx.) 15 kg, flow rate 33 lpm, head 48 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories specifications
| Power | 0.75 hp |
|---|---|
| Weight (Approx.) | 15 kg |
| Flow Rate | 33 lpm |
| Head | 48 meter |
| Product Type | Submersible Pump |
| Wattage | 0.55 kW |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 7 Amp |
| No Of Stages | 12 |
| Cora | 2 |
| Type | V-4 |
FAQs related to GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
Are spare parts and accessories for GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories, so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories?
+
Installation requirements vary by GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories packaged and delivered to avoid transit damage?
+
GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What capacity or specification of GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories should I choose?
+
The right GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories if I need multiple units?
+
Yes — GRITSON 0.75 HP 12 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
