KBS · SKU: thwpm341

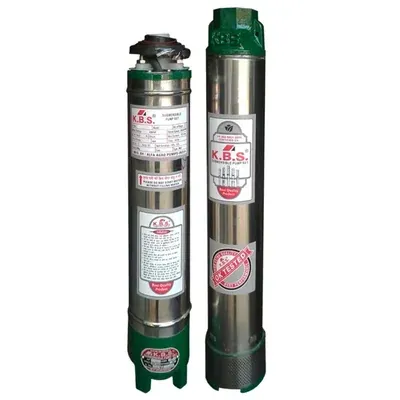

KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head
In Stock
₹6,335₹9,110-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 0.5 hp |
| Weight (Approx.) | 16.5 kg |
| Flow Rate | 60 lpm |
| Head | 61 meter |
| Product Type | Submersible Pump |
| Wattage | 0.37 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 10 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 200 Ft. (61 Meter) |
| Max. Flow/Discharge Rate | 60 LPM (3600 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head
KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 0.5 hp, weight (approx.) 16.5 kg, flow rate 60 lpm, head 61 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 16.5 kg |
| Flow Rate | 60 lpm |
| Head | 61 meter |
| Product Type | Submersible Pump |
| Wattage | 0.37 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 10 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
FAQs related to KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head
Are spare parts and accessories for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head, so replacement parts can be sourced without needing to buy a full new unit.
What if KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I get bulk pricing for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head if I need multiple units?
+
Yes — KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Does ToolHaat offer installation guidance for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head?
+
Installation requirements vary by KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Is a GST invoice provided for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head purchases?
+
Yes, every KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump, 200 ft Head order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
