KBS · SKU: thwpm342

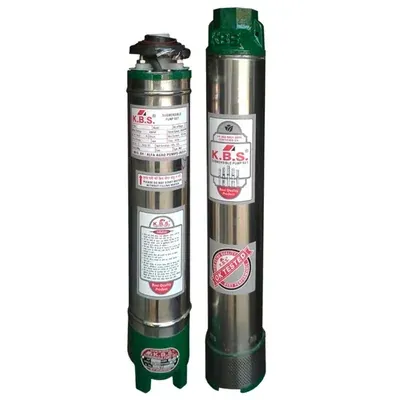

0.5 HP 10 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump, 100ft Head — KBS
In Stock
₹6,449₹9,029-29% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 0.5 hp |
| Weight (Approx.) | 16.5 kg |
| Flow Rate | 50 lpm |
| Head | 30.48 meter |
| Product Type | Submersible Pump |
| Wattage | 0.37 kW |
| Supply Voltage | 150-240 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 10 Stage |
| Pump Type | V3 Type |
| Suitable Bore Size | 3 inch (76.2 mm) |
| Cora | 3 |
| Max. Head Range | 100 Feet (30.48 Meter) |
| Max. Flow/Discharge Rate | 50 LPM (3000 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Stamping | 130 mm |
| Cooling Type | Water Cooled |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
⚖️
