Generic · SKU: thfpm7520

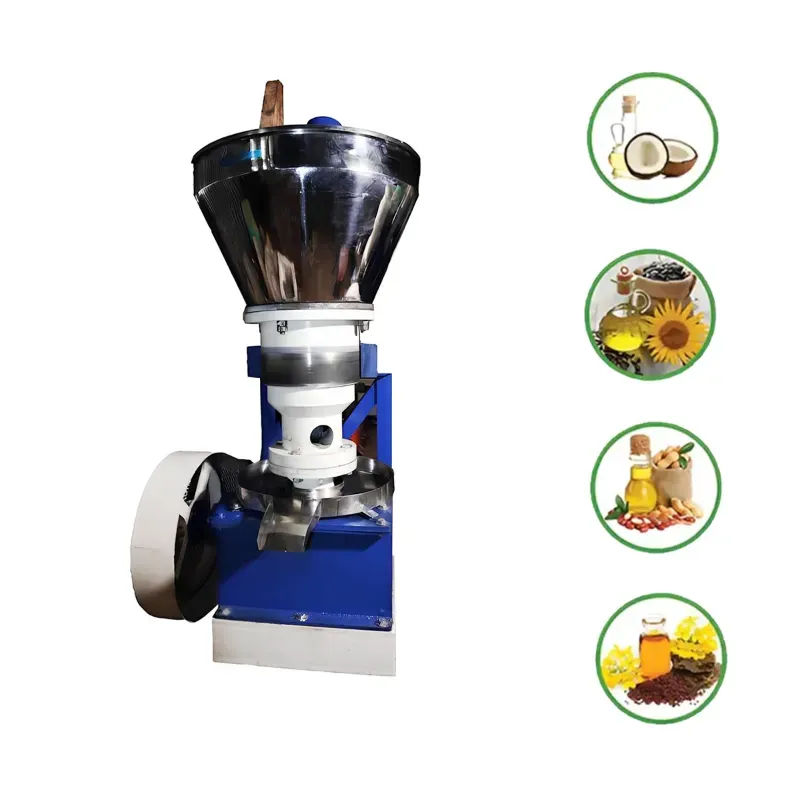

Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity

Name: Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity
Brand: Generic
SKU: thfpm7520
Availability: InStock

In Stock

₹2,16,315₹2,18,500-1% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Material	Cast Iron
Motor	10 HP or 7.5 HP
Motor Speed	960 RPM
Phase	Three
Capacity	60 Kg/hr
Power Consumption	3 Unit/hr.
Hopper Material	Stainless Steel 304 Grade
Oil Tray Material	Stainless Steel 304 Grade
Main Shaft	EN 8 Grade 4 Inch (10.16 cm) Hardened
Plunger Material	FG 30 Grade Casting
Axil Shaft	EN 19 Grade Shaft
Dimensions (L x W x H)	6 x 2 x 6 Feet (182 x 60 x 182 cm)
Select Quality Nuts/Seeds	Choose high-quality nuts or seeds such as sesame, groundnut, or coconut. Ensure they are fresh and free from mold or damage.
Cleaning	Thoroughly clean the nuts or seeds to remove any dirt, dust, or foreign particles. This can be done by rinsing them with water and allowing them to dry completely.
Placement	Position the machine on a stable surface where it can be securely operated. Ensure there is enough space around it for safety and ease of use.
Assembly	For assembling the machine, follow the manufacturerâ€™s instructions carefully to put all parts together correctly.
Fill the Chamber	Place an appropriate amount of cleaned nuts or seeds into the grinding area. Avoid overloading the grinding area as it may affect the grinding process.
Extraction Process	Turn on the machine and with the help of wooden plunger begin applying pressure on the nuts or seeds in the chamber.
Monitor Extraction	As you begin to apply pressure, observe how oil begins to flow out of the spout attached to the machine. Continue applying steady pressure until no more oil is left to be extracted.
Oil Collection	Place a container under the spout to collect the freshly extracted oil. Make sure it is clean and suitable for storing edible oils.
Clean Up	After use, clean all parts of the machine thoroughly with warm water and mild soap if necessary. This prevents residue buildup and maintains hygiene for future use.
Storage of Oil	Store your freshly pressed oil in dark glass bottles in a cool place away from direct sunlight to preserve its quality and nutritional value.
Daily Cleaning	After each use, clean the machine thoroughly to remove any residual oil, seeds, or nuts. This prevents buildup that can affect performance.
Visual Inspections	Regularly check all components for signs of wear or damage. Look for cracks in wooden parts, rust on metal components, and any signs of leakage.
Lubricate Moving Parts	Apply appropriate lubricants to moving parts as specified by the manufacturer. This reduces friction and wear, enhancing the machineâ€™s efficiency.
Use Genuine Parts	Always use original or manufacturer-recommended replacement parts to ensure compatibility and maintain performance standards.
Scheduled Maintenance Checks	Adhere to any recommended maintenance schedules outlined in the manual for optimal performance.
Food Industry	The food industry is one of the most significant users of automatic cold oil press machines. These machines are employed to extract oils from various seeds and nuts such as sesame, sunflower, canola, and peanuts. The cold pressing method preserves the natural flavors, aromas, and nutritional properties of the oils, making them suitable for cooking, salad dressings, and other culinary uses.
Cosmetic Industry	In the cosmetic sector, cold-pressed oils are highly valued for their natural properties and benefits for skin and hair care products. Oils like almond oil and coconut oil extracted using automatic cold oil press machines are commonly used in lotions, creams, shampoos, and conditioners.
Small Scale Industries	Small businesses utilize automatic cold oil press machines to create unique blends or flavored oils tailored to niche markets. This flexibility allows entrepreneurs to innovate within the culinary space by offering high-quality products made from locally sourced ingredients.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity

Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity is listed under Oil Press & Extraction Machine in Food Processing Machine on ToolHaat. Key specifications include material Cast Iron, motor 10 HP or 7.5 HP, motor speed 960 RPM, phase Three, capacity 60 Kg/hr. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity specifications

Material	Cast Iron
Motor	10 HP or 7.5 HP
Motor Speed	960 RPM
Phase	Three
Capacity	60 Kg/hr
Power Consumption	3 Unit/hr.
Hopper Material	Stainless Steel 304 Grade
Oil Tray Material	Stainless Steel 304 Grade
Main Shaft	EN 8 Grade 4 Inch (10.16 cm) Hardened
Plunger Material	FG 30 Grade Casting
Axil Shaft	EN 19 Grade Shaft
Dimensions (L x W x H)	6 x 2 x 6 Feet (182 x 60 x 182 cm)

FAQs related to Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity

Does Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity come with a warranty or servicing support?

Warranty terms for Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity vary by brand and are listed on the product page. ToolHaat support can help connect you with the vendor for servicing or warranty claims after purchase.

What if Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity arrives with a defect or missing part?

Contact ToolHaat support with your order ID if Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity arrives defective or incomplete. Replacement or refund is handled per our returns policy, coordinated with the listing vendor.

Is a GST invoice provided for Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity purchases?

Yes, every Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity order generates a GST invoice automatically, useful for standard food-business accounting and input tax credit claims.

Is Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity suitable for commercial kitchens, food trucks, or industrial dairies?

ToolHaat lists Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity across a range of scales — from compact commercial-kitchen units to higher-capacity industrial models. Check the specifications on each listing to match your operation size.

Are spare parts available for Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity after purchase?

Yes — related subcategories on ToolHaat list compatible spare parts and accessories for Standard Rotary Oil Extraction Machine, 60 kg/hr Production Capacity, so replacements can be sourced without buying a full new unit.
