Generic · SKU: thfpm3882

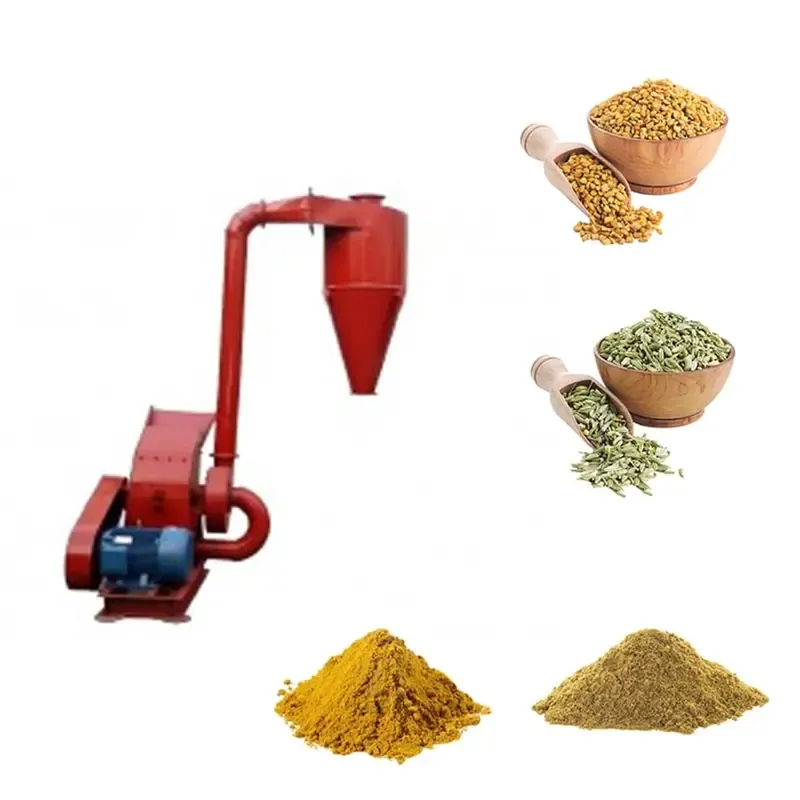

Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity

Name: Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity
Brand: Generic
SKU: thfpm3882
Availability: InStock

In Stock

₹71,973₹89,999-20% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Weight (Approx.)	130 kg
Material	Mild Steel
Motor Power	5HP Motor
Phase	Three
Voltage	440 V
No. of Razor	40
Output Capacity	50-60 kg per hr
Diameter of Hopper	280 x 170 mm
Output Diameter	3 to 15 mm
Application	Grinds all kinds of dry grains and spices
Function	Crush dry grains and spices Into Powder
Dimension (L x W x H)	730 x 650 x 920 mm
Efficient Grinding Mechanism	The hammer mill employs high-speed rotating hammers that efficiently pulverize materials into fine particles.
Cyclone Separator Integration	The incorporation of a cyclone separator enhances the dust collection process, efficiently removing fine particles from the airflow.
Energy Efficiency	The cycloneâ€™s design improves airflow and reduces energy consumption during the grinding process.
Grain Processing	Hammer mills are extensively deployed in the agricultural sector for grinding grains such as corn, wheat, and barley.
Food Industry	In food manufacturing, these machines are used for milling various products, including spices, sugar, and dried fruits, ensuring a fine particle size for enhanced flavor and uniformity.
Pharmaceutical Sector	The fine grinding capabilities of hammer mills make them suitable for processing active pharmaceutical ingredients, ensuring consistent particle size for effective drug formulation.
Location	Place the hammer mill on a solid and level surface to minimize vibrations during operation.
Check Connections	Ensure that the cyclone blower is securely connected to the hammer mill's discharge outlet.
Power Source	Ensure that the hammer mill is connected to it's respective power sources. Check that all electrical connections are safe and up to code.
Select the Right Material	Choose materials suitable for processing through a hammer mill. Common materials include grains (e.g., corn, wheat) or spices.
Preprocessing	If necessary, preprocess the material to eliminate large foreign objects or oversized pieces that could damage the equipment.
Moisture Content	Ensure that the moisture content of the material is within acceptable limits. Excess moisture can lead to clumping and reduce milling efficiency.
Start the Equipment	Turn on the hammer mill and allow it to reach the desired operational speed before introducing any material.
Feed the Material	Gradually feed the material into the hammer millâ€™s hopper. Use an even and controlled feeding method to prevent overloading, which could lead to uneven grinding.
Monitor the Output	Observe the output to ensure the particle size meets your requirements. Depending on the hammer mill settings (like screen size), you can achieve different particle sizes.
Adjust Settings	If the output isnâ€™t to your specifications, adjust the screen size or hammer settings as needed. A finer screen results in smaller particle sizes, while a coarser screen yields larger particles.
Dust Collection	The cyclone blower captures the fine particles that exit the hammer mill. Monitor the cyclone for any blockages or buildup of material.
Adjust Airflow	Depending on your material and desired particle size, you may need to adjust the airflow. This may involve changing the blower speed or modifying the ductwork to ensure optimal performance.
Regular Maintenance	Regularly inspect and clean the cyclone system to avoid any buildup that can affect performance. Ensure that the filtration system is functional, as a clogged filter can hinder airflow.
Protective Gear	Always wear appropriate safety gear, including goggles, gloves, and masks, to protect against dust inhalation and flying debris.
Emergency Procedures	Be familiar with emergency shutdown procedures. Ensure an emergency stop button is accessible, and power cut-off procedures are clear.
Regular Inspections	Routinely perform maintenance checks on both the hammer mill and cyclone blower, looking for wear and tear on hammers, screens, and other vital components.
Wear and Tear	Examine the hammers, screen, and internal surfaces for signs of wear. Replace worn hammers and screens to ensure consistent particle size and efficiency.
Alignment	Ensure all components, including the hammer assembly and cyclone blower, are properly aligned to prevent unnecessary vibrations or stresses.
Dust Accumulation	Regularly clean the cyclone chamber and the blower to prevent clogs that can impede performance. Accumulated dust can also pose safety hazards.
Material Residues	Ensure that leftover materials do not mix with new product batches. Clean the hammer mill and cyclone thoroughly before changing materials.
Lubrication Schedule	Establish a lubrication schedule according to the manufacturer's recommendations. Pay special attention to bearings, and ensure that grease or oil levels are maintained.
Quality Lubricants	Use high-quality lubricants suitable for the specific operating conditions and temperatures.
Monitor Condition	Keep a log of wear patterns and performance to predict when parts need replacing. This proactive approach helps avoid breakdowns.
Stock Spare Parts	Maintain a stock of commonly replaced parts to minimize downtime during maintenance.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity

Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity is listed under Grinding Machine in Food Processing Machine on ToolHaat. Key specifications include weight (approx.) 130 kg, material Mild Steel, motor power 5HP Motor, phase Three, voltage 440 V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity specifications

Weight (Approx.)	130 kg
Material	Mild Steel
Motor Power	5HP Motor
Phase	Three
Voltage	440 V
No. of Razor	40
Output Capacity	50-60 kg per hr
Diameter of Hopper	280 x 170 mm
Output Diameter	3 to 15 mm
Application	Grinds all kinds of dry grains and spices
Function	Crush dry grains and spices Into Powder
Dimension (L x W x H)	730 x 650 x 920 mm

FAQs related to Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity

Are spare parts available for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity after purchase?

Yes — related subcategories on ToolHaat list compatible spare parts and accessories for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity, so replacements can be sourced without buying a full new unit.

Is a GST invoice provided for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity purchases?

Yes, every Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity order generates a GST invoice automatically, useful for standard food-business accounting and input tax credit claims.

Can I get a bulk quote for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity for a multi-outlet food business?

Yes — for multi-outlet or franchise-scale Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity purchases, use the RFQ feature to get a dedicated quote and delivery plan covering multiple locations.

Can I compare different brands and price points for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity?

Yes — ToolHaat lists Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity from multiple verified vendors at different price points and capacities, so you can compare before committing to a purchase for your kitchen or processing line.

Does Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity come with a warranty or servicing support?

Warranty terms for Commercial 5 HP Hammer Mill With Cyclone, Three Phase, 50 to 60 kg/hr Capacity vary by brand and are listed on the product page. ToolHaat support can help connect you with the vendor for servicing or warranty claims after purchase.
