Generic · SKU: thfpm4856

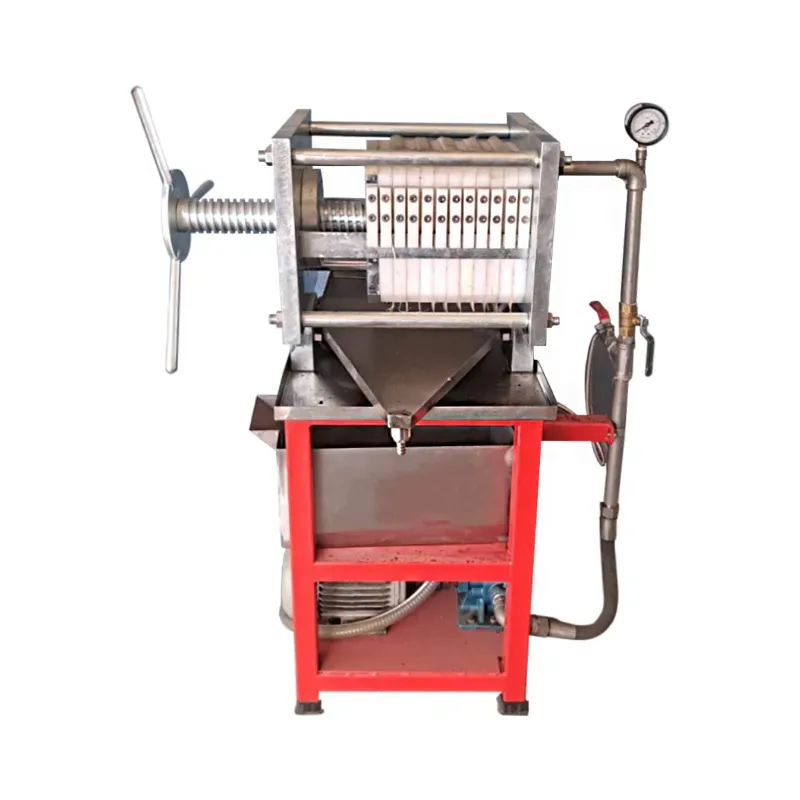

Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity
In Stock
₹88,385₹95,278-7% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Generic |
| Material | Mild Steel |
| Weight (Approx.) | 160 kg |
| Motor Power | 1 HP |
| Phase | Single |
| Automatic Grade | Automatic |
| No. of Filter Plates | 10 Pcs |
| Production Capacity | 30-45 Liter /hr |
| Suitable For | Peanut, Coconut, Sesame, Walnut, Flax Seed, Sunflower Seeds, Soybean, Vegetable Seed, Castor, Perilla Seed, Pumpkin Seeds etc. |
| Product Dimension (L x W x H) | 85.6 x 101.3 x 58.2 cm |
| Design and Construction | The Oil filter press is typically constructed with robust materials to withstand high pressures and corrosive environments. |
| Filtration Process | The machine operates by applying pressure to the mixture of oil and solid particles. This pressure forces the liquid through filter cloths or membranes while retaining the solid particles on the surface. |
| Efficiency | One of the primary features is their efficiency in separating solids from liquids, which results in high-quality filtered oil with minimal impurities. |
| Ease of Maintenance | Oil filter presses are designed for easy maintenance, with accessible components that facilitate cleaning and replacement of filter cloths when necessary. |
| Food Industry | In the production of edible oils such as olive oil, sunflower oil, and canola oil, oil filter presses are utilized to remove impurities like sediment and suspended solids from crude oil. This purification process enhances the quality and safety of the final product, making it suitable for consumption. |
| Cosmetics | The cosmetic industry employs oil filter presses to refine oils used in skincare products. By filtering out impurities, these machines ensure that the oils are safe and effective for use in creams, lotions, and other beauty products. |
| Waste Oil Recycling | The filter press is pivotal in the recycling of waste oils, separating valuable oil from sludge and other unwanted materials. This process not only conserves resources but also mitigates environmental impacts associated with oil waste. |
| Clean the Machine | Before using the filter press, ensure that all components are clean. Any residue from previous uses can contaminate the oil. |
| Inspect the Filter Plates | Check for any damages or wear. Replace any damaged plates to ensure optimal performance. |
| Position the Machine | Place the filter press on a stable surface away from any water source or direct sunlight. |
| Connect the Pump | Attach the pump to the inlet of the filter press. Ensure that all connections are secure to avoid leaks. |
| Fill the Oil Tank | Pour the unfiltered oil into the oil tank connected to the pump. |
| Check for Air Leaks | Ensure there are no air leaks in the system that might affect the pressure during operation. |
| Start the Pump | Turn on the pump to begin circulating the oil into the filter press. |
| Apply Pressure | Activate the hydraulic system to apply pressure to the filter plates. This pressure forces the oil through the plates, where it will be filtered. |
| Monitor the Process | Keep an eye on the flow rate and pressure readings. Adjust the hydraulic pressure as necessary to maintain efficient filtration without overloading the plates. |
| Check the Outlet | Once the oil has been filtered, it will exit through the outlet port. Collect the filtered oil in a clean container. |
| Inspect Filter Residue | After completing the filtration process, check the residue on the filter plates. This will give you an idea of the impurities removed. |
| Check Fluid Levels | Ensure that hydraulic and lubrication oil levels are adequate. Low levels can lead to mechanical failures. |
| Lubrication | Regularly lubricate moving parts according to the manufacturer’s specifications. Use the correct type of lubricant to avoid contamination. |
| Deep Cleaning | Conduct a thorough cleaning of the entire machine, including internal components. Remove any debris and buildup that may affect performance. |
| Professional Inspection | Schedule a comprehensive inspection by a qualified technician to assess the condition of the machine. This includes checking all mechanical and electrical components. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity
Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity is listed under Oil Press & Extraction Machine in Food Processing Machine on ToolHaat. Key specifications include material Mild Steel, weight (approx.) 160 kg, motor power 1 HP, phase Single, automatic grade Automatic. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity specifications
| Material | Mild Steel |
|---|---|
| Weight (Approx.) | 160 kg |
| Motor Power | 1 HP |
| Phase | Single |
| Automatic Grade | Automatic |
| No. of Filter Plates | 10 Pcs |
| Production Capacity | 30-45 Liter /hr |
| Suitable For | Peanut, Coconut, Sesame, Walnut, Flax Seed, Sunflower Seeds, Soybean, Vegetable Seed, Castor, Perilla Seed, Pumpkin Seeds etc. |
| Product Dimension (L x W x H) | 85.6 x 101.3 x 58.2 cm |
| Design and Construction | The Oil filter press is typically constructed with robust materials to withstand high pressures and corrosive environments. |
| Filtration Process | The machine operates by applying pressure to the mixture of oil and solid particles. This pressure forces the liquid through filter cloths or membranes while retaining the solid particles on the surface. |
| Efficiency | One of the primary features is their efficiency in separating solids from liquids, which results in high-quality filtered oil with minimal impurities. |
FAQs related to Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity
What throughput or capacity of Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity is right for my kitchen or dairy?
+
The right Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity depends on your required processing volume — each listing specifies capacity and power requirements. For help matching equipment to your operation’s scale, contact ToolHaat support or submit an RFQ.
Can I get a bulk quote for Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity for a multi-outlet food business?
+
Yes — for multi-outlet or franchise-scale Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity purchases, use the RFQ feature to get a dedicated quote and delivery plan covering multiple locations.
Does Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity come with a warranty or servicing support?
+
Warranty terms for Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity vary by brand and are listed on the product page. ToolHaat support can help connect you with the vendor for servicing or warranty claims after purchase.
What if Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity arrives with a defect or missing part?
+
Contact ToolHaat support with your order ID if Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity arrives defective or incomplete. Replacement or refund is handled per our returns policy, coordinated with the listing vendor.
What food-safety or hygiene standards does Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity meet?
+
Check the specifications on each Commercial 1 HP Oil Filter Machine, 30-45 Litre/hr Production Capacity listing for material grade and food-safety compliance details — vendors specify this information where applicable to the equipment type.
